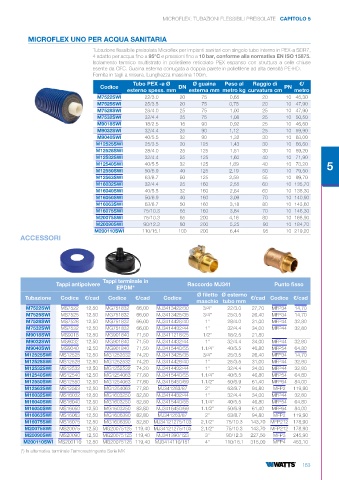

Page 185 - WATTS - CATALISTINO 2025

MICROFLEX: TUBAZIONI FLESSIBILI PREISOLATE CAPITOLO 5

MICROFLEX UNO PER ACQUA SANITARIA
Tubazione flessibile preisolata Microflex per impianti sanitari con singolo tubo interno in PEX-a SDR7,
4 adatto per acqua fino a 95°C e pressioni fino a 10 bar, conforme alla normativa EN ISO 15875.
Isolamento termico multistrato in polietilene reticolato PEX espanso con struttura a celle chiuse
esente da CFC. Guaina esterna corrugata a doppia parete in polietilene ad alta densità PE-HD.
Fornita in tagli a misura. Lunghezza massima 100m.
Tubo PEX -a Ø Ø guaina Peso al Raggio di €/
Codice DN PN
esterno spess. mm esterna mm metro kg curvatura cm metro
M7522SWI 22/3.0 20 75 0,65 20 10 45,30
M7525SWI 25/3.5 20 75 0,75 20 10 47,90
M7528SWI 28/4.0 25 75 1,00 25 10 47,90
M7532SWI 32/4.4 25 75 1,08 25 10 50,50
M9018SWI 18/2.5 15 90 0,92 25 10 46,60
M9032SWI 32/4.4 25 90 1,12 25 10 59,90
M9040SWI 40/5.5 32 90 1,32 30 10 63,00
M12525SWI 25/3.5 20 125 1,43 30 10 66,60
M12528SWI 28/4.0 25 125 1,51 30 10 69,20
M12532SWI 32/4.4 25 125 1,60 40 10 71,90
M12540SWI 40/5.5 32 125 1,89 40 10 73,20 5
M12550SWI 50/6.9 40 125 2,19 50 10 79,50
M12563SWI 63/8.7 50 125 2,59 55 10 99,70
M16032SWI 32/4.4 25 160 2,55 60 10 135,70
M16040SWI 40/5.5 32 160 2,84 60 10 138,30
M16050SWI 50/6.9 40 160 3,09 70 10 140,90
M16063SWI 63/8.7 50 160 3,18 80 10 143,60
M16075SWI 75/10.3 65 160 3,84 70 10 146,30
M20075SWI 75/10.3 65 200 4,16 80 10 168,90
M20090SWI 90/12.3 80 200 5,25 90 10 184,70
M200110SWI 110/15.1 100 200 6,44 95 10 219,20
ACCESSORI

Tappi terminale in
Tappi antipolvere Raccordo MJ341 Punto fisso
EPDM*
Ø filetto Ø esterno
Tubazione Codice €/cad Codice €/cad Codice €/cad Codice €/cad
maschio tubo mm
M7522SWI MS7522 12,50 MG751832 66,00 MJ3413422/30 3/4" 22/3.0 27,70 MFP34 14,70
M7525SWI MS7525 12,50 MG751832 66,00 MJ3413425/35 3/4” 25/3.5 26,40 MFP34 14,70
M7528SWI MS7528 12,50 MG751832 66,00 MJ3414428/40 1" 28/4.0 31,00 MFP44 32,80
M7532SWI MS7532 12,50 MG751832 66,00 MJ3414432/44 1" 32/4.4 34,00 MFP44 32,80
M9018SWI MS9018 12,50 MG901840 71,50 MJ3411218/25 1/2" 18/2.5 21,80
M9032SWI MS9032 12,50 MG901840 71,50 MJ3414432/44 1” 32/4.4 34,00 MFP44 32,80
M9040SWI MS9040 12,50 MG901840 71,50 MJ3415440/55 1.1/4" 40/5.5 46,80 MFP54 64,80
M12525SWI MS12525 12,50 MG1252532 74,20 MJ3413425/35 3/4” 25/3.5 26,40 MFP34 14,70
M12528SWI MS12528 12,50 MG1252532 74,20 MJ3414428/40 1" 25/3.5 31,00 MFP44 32,80
M12532SWI MS12532 12,50 MG1252532 74,20 MJ3414432/44 1" 32/4.4 34,00 MFP44 32,80
M12540SWI MS12540 12,50 MG1254063 77,80 MJ3415440/55 1.1/4” 40/5.5 46,80 MFP54 64,80
M12550SWI MS12550 12,50 MG1254063 77,80 MJ3416450/69 1.1/2” 50/6.9 61,40 MFP64 84,00
M12563SWI MS12563 12,50 MG1254063 77,80 MJ341263/87 2” 63/8.7 94,80 MFP2 119,90
M16032SWI MS16032 12,50 MG1603250 82,80 MJ3414432/44 1" 32/4.4 34,00 MFP44 32,80
M16040SWI MS16040 12,50 MG1603250 82,80 MJ3415440/55 1.1/4" 40/5.5 46,80 MFP54 64,80
M16050SWI MS16050 12,50 MG1603250 82,80 MJ3416450/69 1.1/2” 50/6.9 61,40 MFP64 84,00
M16063SWI MS16063 12,50 MG1606390 82,80 MJ341263/87 2” 63/8.7 94,80 MFP2 119,90
M16075SWI MS16075 12,50 MG1606390 82,80 MJ34121275/103 2,1/2" 75/10.3 143,70 MFP212 178,90
M20075SWI MS20075 12,50 MG20075125 119,40 MJ34121275/103 2,1/2" 75/10.3 143,70 MFP212 178,90
M20090SWI MS20090 12,50 MG20075125 119,40 MJ341390/123 3" 90/12.3 227,50 MFP3 245,90
M200110SWI MS200110 12,50 MG20075125 119,40 MJ3414110/151 4" 110/15.1 315,00 MFP4 453,10
(*) In alternativa terminale Termorestringente Serie MK
