CAPITOLO 9 VALVOLE E ACCESSORI PER RADIATORI

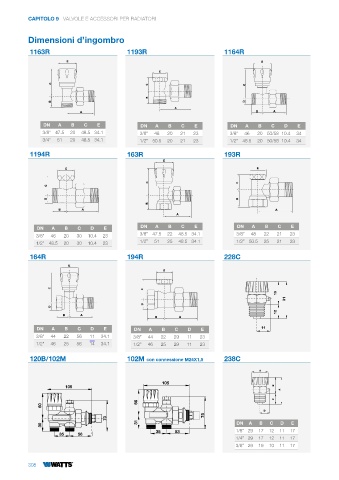

Dimensioni d’ingombro
1163R 1193R 1164R

DN A B C E DN A B C E DN A B C D E
3/8” 47.5 20 48.5 34.1 3/8” 48 20 21 23 3/8” 46 20 50/58 10.4 34
3/4” 51 20 48.5 34.1 1/2” 50.5 20 21 23 1/2” 48.5 20 50/58 10.4 34

1194R 163R 193R

DN A B C D E DN A B C E DN A B C E
3/8” 46 20 30 10.4 23 3/8” 47.5 22 48.5 34.1 3/8” 48 22 21 23
1/2” 48.5 20 30 10.4 23 1/2” 51 25 48.5 34.1 1/2” 50.5 25 21 23
164R 194R 228C

DN A B C D E DN A B C D E
3/8” 44 22 56 11 34.1 3/8” 44 22 29 11 23
1/2” 46 25 56 14 34.1 1/2” 46 25 29 11 23

120B/102M 102M con connessione M24X1,5 238C

105
105

56
60
75
70
30 31 DN A B C D E
35 53 1/8” 29 17 12 11 17
35 56
1/4” 29 17 12 11 17
3/8” 29 19 10 11 17
