RACCORDI CAPITOLO 13

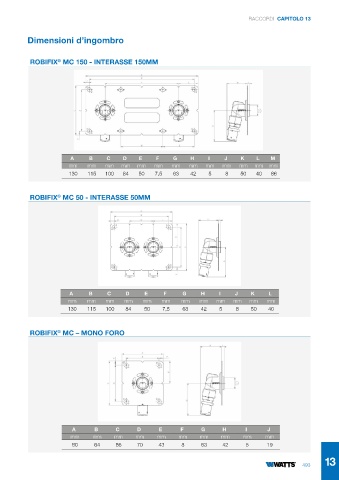

Dimensioni d’ingombro
ROBIFIX MC 150 - INTERASSE 150MM
®
A B C D E F G H I J K L M
mm mm mm mm mm mm mm mm mm mm mm mm mm
130 115 100 84 50 7,5 63 42 5 8 50 40 86
ROBIFIX MC 50 - INTERASSE 50MM
®
A B C D E F G H I J K L
mm mm mm mm mm mm mm mm mm mm mm mm
130 115 100 84 50 7,5 63 42 5 8 50 40
ROBIFIX MC – MONO FORO
®
A B C D E F G H I J
mm mm mm mm mm mm mm mm mm mm
80 64 86 70 43 8 63 42 5 19
