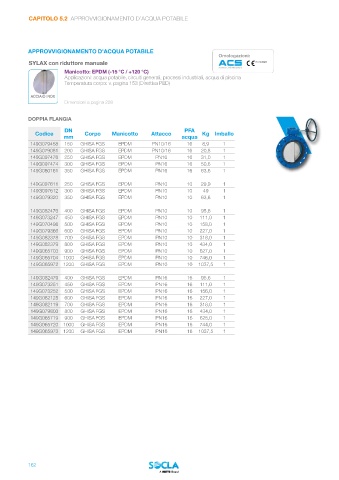

Page 164 - WATTS - CATALOGO SOCLA

CAPITOLO 5.2 APPROVVIGIONAMENTO D’ACQUA POTABILE

APPROVVIGIONAMENTO D’ACQUA POTABILE
Omologazioni:
SYLAX con riduttore manuale PED 2014/68/UE
Manicotto: EPDM (-15 °C / +120 °C)
Applicazioni: acqua potabile, circuiti generali, processi industriali, acqua di piscina
Temperatura corpo: v. pagina 153 (Direttiva PED)

ACCIAIO INOX
Dimensioni a pagina 228

DOPPIA FLANGIA

DN PFA
Codice Corpo Manicotto Attacco Kg Imballo
mm acqua
149G079458 150 GHISA FGS EPDM PN10/16 16 8,9 1
149G079081 200 GHISA FGS EPDM PN10/16 16 20,8 1
149G097476 250 GHISA FGS EPDM PN16 16 31,0 1
149G097474 300 GHISA FGS EPDM PN16 16 50,6 1
149G080161 350 GHISA FGS EPDM PN16 16 63,6 1

149G097611 250 GHISA FGS EPDM PN10 10 29,9 1
149G097612 300 GHISA FGS EPDM PN10 10 49 1
149G079320 350 GHISA FGS EPDM PN10 10 63,8 1

149G082476 400 GHISA FGS EPDM PN10 10 95,6 1
149G073247 450 GHISA FGS EPDM PN10 10 111,0 1
149G070498 500 GHISA FGS EPDM PN10 10 158,0 1
149G079366 600 GHISA FGS EPDM PN10 10 227,0 1
149G082378 700 GHISA FGS EPDM PN10 10 318,0 1
149G082379 800 GHISA FGS EPDM PN10 10 434,0 1
149G065703 900 GHISA FGS EPDM PN10 10 627,0 1
149G065704 1000 GHISA FGS EPDM PN10 10 746,0 1
149G065972 1200 GHISA FGS EPDM PN10 10 1037,5 1

149G082479 400 GHISA FGS EPDM PN16 16 95,6 1
149G073251 450 GHISA FGS EPDM PN16 16 111,0 1
149G073252 500 GHISA FGS EPDM PN16 16 156,0 1
149G082125 600 GHISA FGS EPDM PN16 16 227,0 1
149G082119 700 GHISA FGS EPDM PN16 16 318,0 1
149G079803 800 GHISA FGS EPDM PN16 16 434,0 1
149G065719 900 GHISA FGS EPDM PN16 16 625,0 1
149G065720 1000 GHISA FGS EPDM PN16 16 744,0 1
149G065973 1200 GHISA FGS EPDM PN16 16 1037,5 1

162
