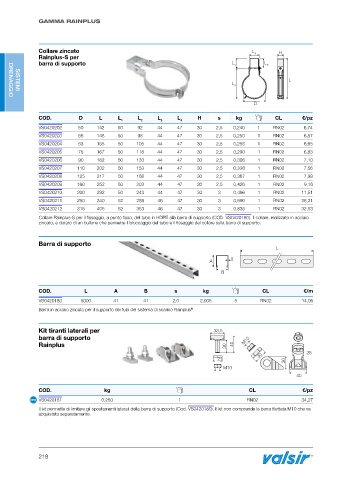

Page 220 - VALSIR - LISTINO ITS 2024
P. 220
GAMMA RAINPLUS
Collare zincato L 4 H
Rainplus-S per
barra di supporto L 1 L 3
L
L
2
SISTEMI
DRENAGGIO
D
COD. D L L L L L H s kg CL €/pz
1 2 3 4
VS0420202 50 142 50 92 44 47 30 2,5 0,240 1 RN02 6,74
VS0420203 56 148 50 98 44 47 30 2,5 0,250 1 RN02 6,57
VS0420204 63 155 50 105 44 47 30 2,5 0,258 1 RN02 6,65
VS0420205 75 167 50 118 44 47 30 2,5 0,290 1 RN02 6,83
VS0420206 90 182 50 133 44 47 30 2,5 0,306 1 RN02 7,10
VS0420207 110 202 50 153 44 47 30 2,5 0,338 1 RN02 7,56
VS0420208 125 217 50 168 44 47 30 2,5 0,367 1 RN02 7,98
VS0420209 160 252 50 203 44 47 30 2,5 0,426 1 RN02 9,16
VS0420210 200 292 50 243 44 47 30 3 0,496 1 RN02 11,51
VS0420211 250 340 52 288 46 47 30 3 0,690 1 RN02 26,31
VS0420212 315 405 52 353 46 47 30 3 0,835 1 RN02 32,53
Collare Rainplus-S per il fissaggio, a punto fisso, del tubo in HDPE alla barra di supporto (COD. VS0420180). Il collare, realizzato in acciaio
zincato, è dotato di un bullone che permette il bloccaggio del tubo e il fissaggio del collare sulla barra di supporto.
Barra di supporto
L
s
A
B
COD. L A B s kg CL €/m
VS0420180 5000 41 41 2,0 2,005 5 RN02 14,06
Barra in acciaio zincato per il supporto dei tubi del sistema di scarico Rainplus .
®
Kit tiranti laterali per 33,5
barra di supporto M10
Rainplus 30 40
30 26
21
30
M10
40
COD. kg CL €/pz
NEW VS0420181 0,250 1 RN02 34,27
Il kit permette di limitare gli spostamenti laterali della barra di supporto (Cod. VS0420180). Il kit non comprende la barra filettata M10 che va
acquistata separatamente.
218
