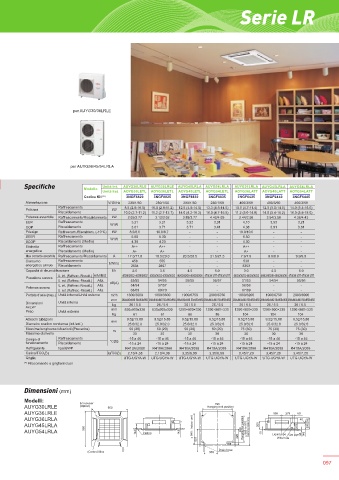

Page 97 - FUJITSU - SPLIT-MULTISPLIT

Serie LR

per AUYG30/36LRLE

per AUYG36/45/54LRLA

Specifiche Modello Unità Int. AUYG30LRLE AUYG36LRLE AUYG45LRLA AUYG54LRLA AUYG36LRLA AUYG45LRLA AUYG54LRLA
Unità Est. AOYG30LETL AOYG36LETL AOYG45LETL AOYG54LETL AOYG36LATT AOYG45LATT AOYG54LATT
Codice Kit ( * ) 3NGF8820 3NGF8825 3NGF8830 3NGF8835 3NGF6435 3NGF6440 3NGF6445
Alimentazione V/ Ø/Hz 230/1/50 230/1/50 230/1/50 230/1/50 400/3/50 400/3/50 400/3/50
Raffrescamento 8.5 (2.8-10.0) 10.0 (2.8-11.2) 12.5 (4.0-14.0) 13.3 (4.5-14.5) 10.0 (4.7-11.4) 12.5 (5.0-14.0) 14.0 (5.4-16.0)
Potenza kW
Riscaldamento 10.0 (2.7-11.2) 11.2 (2.7-12.7) 14.0 (4.2-16.2) 16.0 (4.7-16.5) 11.2 (5.0-14.0) 14.0 (5.4-16.2) 16.0 (5.8-18.0)
Potenza assorbita Raffrescamento/Riscaldamento kW 2.65/2.77 3.12/3.02 3.88/3.77 4.42/4.69 2.44/2.56 3.54/3.58 4.36/4.43
EER Raffrescamento W/W 3.21 3.21 3.22 3.01 4.10 3.53 3.21
COP Riscaldamento 3.61 3.71 3.71 3.41 4.38 3.91 3.61
Pdesign Raffrescam./Riscaldam. (-10°C) kW 8.5/8.0 10.0/8.7 - - 10.0/10.0 - -
SEER Raffrescamento W/W 6.50 6.30 - - 6.50 - -
SCOP Riscaldamento (Medio) 4.30 4.20 - - 4.30 - -
Etichetta Raffrescamento A++ A++ - - A++ - -
energetica Riscaldamento (Medio) A+ A+ - - A+ - -
Max corrente assorbita Raffrescamento/Riscaldamento A 17.0/17.0 18.5/20.0 20.5/20.5 21.5/21.5 7.9/7.9 8.9/8.9 9.9/9.9
Consumo Raffrescamento 458 555 - - 538 - -
energetico annuo Riscaldamento kWh/a 2604 2897 - - 3253 - -
Capacità di deumidificazione I/h 2.5 3.5 4.5 5.0 3.0 4.5 5.0
Pressione sonora U. int. (Raffresc.-Riscald.) A/M/B/S 40/38/36/32-40/38/36/32 43/38/36/32-43/38/36/32 46/42/40/36-46/42/40/36 47/43/41/37-47/43/41/37 44/39/36/33-44/39/36/33 46/42/40/36/-46/42/40/36 47/43/41/37-47/43/41/37
U. est. (Raffresc.-Riscald.) Alta dB(A) 53/55 54/55 55/55 55/57 51/53 54/54 55/56
Potenza sonora U. int. (Raffresc.-Riscald.) Alta 54/54 57/57 - - 58/58 - -
U. est. (Raffresc.-Riscald.) Alta 68/69 69/70 - - 67/69 - -
Portata d’aria (max.) Unità interna/Unità esterna m 3 /h 1600/3600 1800/3800 1900/6750 2000/6750 1800/6200 1900/6750 2000/6900
mm 288x840x840 50x950x950 288x840x840 50x950x950 288x840x840 50x950x950 288x840x840 50x950x950 288x840x840 50x950x950 288x840x840 50x950x950 288x840x840 50x950x950
Dimensioni Unità interna kg 26 / 5.5 26 / 5.5 26 / 5.5 26 / 5.5 26 / 5.5 26 / 5.5 26 / 5.5
AxLxP mm
Peso Unità esterna 830x900x330 830x900x330 1290×900×330 1290×900×330 1290×900×330 1290×900×330 1290×900×330
kg 61 61 86 86 104 104 104
Attacchi tubazioni mm 9.52/15.88 9.52/15.88 9.52/15.88 9.52/15.88 9.52/15.88 9.52/15.88 9.52/15.88
Diametro scarico condensa (int./est.) 25.0/32.0 25.0/32.0 25.0/32.0 25.0/32.0 25.0/32.0 25.0/32.0 25.0/32.0
Massima lunghezza tubazioni (Precarica) m 50 (20) 50 (20) 50 (20) 50 (20) 75 (30) 75 (30) 75 (30)
Massimo dislivello 30 30 30 30 30 30 30
Campo di Raffrescamento -15 a 46 -15 a 46 -15 a 46 -15 a 46 -15 a 46 -15 a 46 -15 a 46
funzionamento Riscaldamento °CDB -15 a 24 -15 a 24 -15 a 24 -15 a 24 -15 a 24 -15 a 24 -15 a 24
Refrigerante tipo/GWP R410A/2088 R410A/2088 R410A/2088 R410A/2088 R410A/2088 R410A/2088 R410A/2088
Carica/TCO 2 Eq kg/TCO 2 Eq 2,10/4,38 2,10/4,38 3,35/6,99 3,35/6,99 3,45/7,20 3,45/7,20 3,45/7,20
Griglia UTG-UGYA-W UTG-UGYA-W UTG-UGYA-W UTG-UGYA-W UTG-UGYA-W UTG-UGYA-W UTG-UGYA-W
( * ) Filocomando e griglia inclusi

Dimensioni (mm)

Modelli:
796
AUYG30LRLE ,5 UHFHLYHU Hanging bolt position
(Option)
AUYG36LRLE 358
AUYG36LRLA
AUYG45LRLA Ƒ ,QGRRU XQLW Ceiling opening
AUYG54LRLA Ceiling 699 Hanging bolt position Ƒ WR /LTXLG SLSH Gas pipe
Wire hole

Drain hose
(Control Box 358
097
