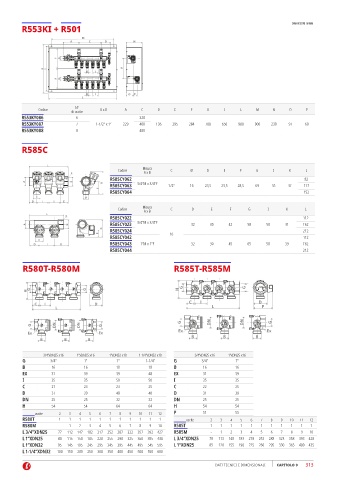

Page 315 - GIACOMINI - LISTINO 2024 - DELLAFIORE

R553KI + R501 DIMENSIONI IN MM

M
A C D N

F G
H I E
B I
F G

B I O P
L
N°
Codice G x B A C D E F H I L M N O P
di uscite
R553KY086 6 320
R553KY087 7 1-1/2” x 1” 229 400 136 295 284 700 650 980 900 230 97 60
R553KY088 8 480

R585C

L
Misura
Codice C Ø D E F G I K L
K A x B
R585CY062 82
A B
G R585CY063 3/4”M x 3/4”F 1/2” 16 23,5 23,5 28,5 69 35 31 117
F
R585CY064 152
C Ø
D I I E
Misura
Codice C D E F G I K L
L A x B
R585CY022 112
K
R585CY023 3/4”M x 3/4”F
A B 32 30 42 58 50 31 162
G
R585CY024 212
F 16
R585CY042 112
C
D I E R585CY043 1”M x 1”F 32 30 45 65 50 39 162
R585CY044 212
R580T-R580M R585T-R585M
G G
G G H
H
C I D
C I D L P
L

G DN DN G G DN DN G
Ex Ex Ex Ex
B B B B B B

3/4”xDN25 x16 1”xDN25 x16 1”xDN32 x18 1-1/4”xDN32 x18 3/4”xDN25 x16 1”xDN25 x16
G 3/4” 1” 1” 1-1/4” G 3/4” 1”
B 16 16 18 18 B 16 16
EX 31 39 39 48 EX 31 39
I 35 35 50 50 I 35 35
C 21 23 23 25 C 22 25
D 37 39 48 48 D 31 39
DN 25 25 32 32 DN 25 25
H 54 54 64 64 H 54 54
P 51 55
uscite 2 3 4 5 6 7 8 9 10 11 12
R580T 1 1 1 1 1 1 1 1 1 1 1 uscite 2 3 4 5 6 7 8 9 10 11 12
R580M - 1 2 3 4 5 6 7 8 9 10 R585T 1 1 1 1 1 1 1 1 1 1 1
L 3/4”XDN25 77 112 147 182 217 252 287 322 357 392 427 R585M - 1 2 3 4 5 6 7 8 9 10
L 1”XDN25 80 115 150 185 220 255 290 325 360 395 430 L 3/4”XDN25 78 113 148 183 218 253 288 323 358 393 428
L 1”XDN32 95 145 195 245 295 345 395 445 495 545 595 L 1”XDN25 85 120 155 190 225 260 295 330 365 400 435
L 1-1/4”XDN32 100 150 200 250 300 350 400 450 500 550 600

DATI TECNICI E DIMENSIONALI CAPITOLO 9 313
