P. 617

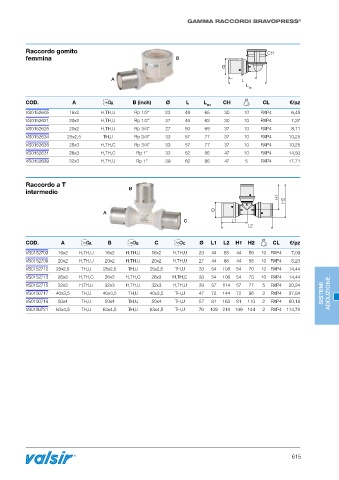

GAMMA RACCORDI BRAVOPRESS ®
Raccordo gomito CH
femmina B
Ø
A L
L tot
COD. A A B (inch) Ø L L tot CH CL €/pz
VS0152605 16x2 H,TH,U Rp 1/2” 23 48 65 30 10 RXP4 6,45
VS0152621 20x2 H,TH,U Rp 1/2” 27 46 62 30 10 RXP4 7,37
VS0152625 20x2 H,TH,U Rp 3/4” 27 50 69 37 10 RXP4 8,11
VS0152634 25x2,5 TH,U Rp 3/4” 33 57 77 37 10 RXP4 10,25
VS0152635 26x3 H,TH,C Rp 3/4” 33 57 77 37 10 RXP4 10,25
VS0152631 26x3 H,TH,C Rp 1” 33 62 86 47 10 RXP4 14,50
VS0152639 32x3 H,TH,U Rp 1” 39 62 86 47 5 RXP4 17,71
Raccordo a T
intermedio B B
H1
H2
Ø
A
C L1
L2
COD. A A B B C C Ø L1 L2 H1 H2 CL €/pz
VS0152703 16x2 H,TH,U 16x2 H,TH,U 16x2 H,TH,U 23 44 88 44 56 10 RXP4 7,09
VS0152709 20x2 H,TH,U 20x2 H,TH,U 20x2 H,TH,U 27 44 88 44 58 10 RXP4 8,23
VS0152712 25x2,5 TH,U 25x2,5 TH,U 25x2,5 TH,U 33 54 108 54 70 10 RXP4 14,44
VS0152713 26x3 H,TH,C 26x3 H,TH,C 26x3 H,TH,C 33 54 108 54 70 10 RXP4 14,44
VS0152715 32x3 H,TH,U 32x3 H,TH,U 32x3 H,TH,U 39 57 114 57 77 5 RXP4 20,24
VS0150717 40x3,5 TH,U 40x3,5 TH,U 40x3,5 TH,U 47 72 144 72 96 2 RXP4 37,84 SISTEMI ADDUZIONE
VS0150719 50x4 TH,U 50x4 TH,U 50x4 TH,U 57 81 162 81 110 2 RXP4 60,18
VS0150721 63x4,5 TH,U 63x4,5 TH,U 63x4,5 TH,U 70 109 218 109 144 2 RXP4 114,78
