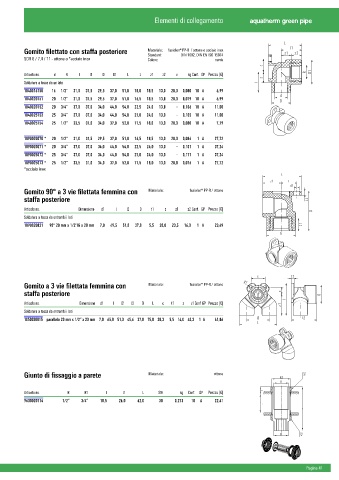

Page 43 - AQUATHERM - LISTINO REV 05-2024 - FIDRA

Elementi di collegamento aquatherm green pipe

L
Gomito filettato con staffa posteriore Materiale: fusiolen® PP-R / ottone o acciaio inox z 1 l1 z 2
SDR 6 / 7,4 / 11 - ottone o *acciaio inox Standard: DIN 1692, DIN EN ISO 15874
Colore:
verde
c
Articolo no. d R l l1 D D1 L z z1 z2 c kg Conf. GP Prezzo [€] R D1
z
Saldatura a tasca da un lato l
1040016150 16 1/2“ 31,0 31,5 29,5 37,0 51,0 18,0 18,5 13,0 20,0 0,080 10 A 6,99
d
1040020151 20 1/2“ 31,0 31,5 29,5 37,0 51,0 16,5 18,5 13,0 20,0 0,079 10 A 6,99 D
1040020152 20 3/4“ 37,0 37,0 34,0 44,0 54,0 22,5 24,0 13,0 - 0,106 10 A 11,00
1040025153 25 3/4“ 37,0 37,0 34,0 44,0 54,0 21,0 24,0 13,0 - 0,105 10 A 11,00
1040025154 25 1/2“ 33,5 31,0 34,0 37,0 53,0 17,5 18,0 13,0 20,0 0,080 10 A 7,19

1090020070 * 20 1/2“ 31,0 31,5 29,5 37,0 51,0 16,5 18,5 13,0 20,0 0,084 1 A 27,72
1090020071 * 20 3/4“ 37,0 37,0 34,0 44,0 54,0 22,5 24,0 13,0 - 0,101 1 A 37,24
1090025072 * 25 3/4“ 37,0 37,0 34,0 44,0 54,0 21,0 24,0 13,0 - 0,111 1 A 37,24
1090025073 * 25 1/2“ 33,5 31,0 34,0 37,0 53,0 17,5 18,0 13,0 20,0 0,076 1 A 27,72
*acciaio inox
l
z 1 z
d1
Gomito 90° a 3 vie filettata femmina con Materiale: fusiolen® PP-R / ottone
staffa posteriore t1
Articolo no. Dimensione d1 l l2 D t1 z z1 z2 Conf. GP Prezzo [€] l2
Saldatura a tasca da entrambi i lati
1090020031 90° 20 mm x 1/2“IG x 20 mm 7,0 49,5 51,0 37,0 5,5 20,0 23,5 16,0 1 A 23,49 z 2
D

c t1
Gomito a 3 vie filettata femmina con Materiale: fusiolen® PP-R / ottone d1
staffa posteriore z D

l
Articolo no. Dimensione d1 l l2 l3 D L c t1 z z1Conf GP Prezzo [€] z 1
Saldatura a tasca da entrambi i lati
1050020015 parallelo 20 mm x 1/2“ x 20 mm 7,0 65,0 51,0 45,6 37,0 75,0 28,3 5,5 14,0 42,3 1 A 41,06 l3 l2
L

Giunto di fissaggio a parete Materiale: ottone

Articolo no. R R1 l l1 L SW kg Conf. GP Prezzo [€]
9600020114 1/2“ 3/4“ 10,5 26,0 62,0 30 0,213 10 A 22,41

Pagina 41
