VENTILCONVETTORI

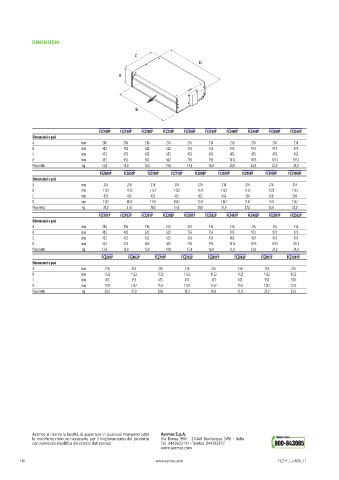

DIMENSIONI
C
D
A
B
FCZ100P FCZ150P FCZ200P FCZ250P FCZ300P FCZ350P FCZ400P FCZ450P FCZ500P FCZ550P
Dimensioni e pesi
A mm 216 216 216 216 216 216 216 216 216 216
B mm 412 412 522 522 753 753 973 973 973 973
C mm 453 453 453 453 453 453 453 453 453 453
D mm 452 452 562 562 793 793 1013 1013 1013 1013
Peso netto kg 12,0 13,0 12,0 14,0 14,0 16,0 20,0 22,0 23,0 24,0
FCZ600P FCZ650P FCZ700P FCZ750P FCZ800P FCZ850P FCZ900P FCZ950P FCZ1000P
Dimensioni e pesi
A mm 216 216 216 216 216 216 216 216 216
B mm 1122 1122 1122 1122 1122 1122 1122 1122 1122
C mm 453 453 453 453 453 453 558 558 558
D mm 1147 1147 1147 1147 1147 1147 1147 1147 1147
Peso netto kg 29,0 31,0 29,0 31,0 29,0 31,0 32,0 32,0 32,0
FCZ101P FCZ102P FCZ201P FCZ202P FCZ301P FCZ302P FCZ401P FCZ402P FCZ501P FCZ502P
Dimensioni e pesi
A mm 216 216 216 216 216 216 216 216 216 216
B mm 412 412 522 522 753 753 973 973 973 973
C mm 453 453 453 453 453 453 453 453 453 453
D mm 452 452 562 562 793 793 1013 1013 1013 1013
Peso netto kg 12,0 13,0 13,0 14,0 15,0 16,0 21,0 22,0 23,0 24,0
FCZ601P FCZ602P FCZ701P FCZ702P FCZ801P FCZ802P FCZ901P FCZ1001P
Dimensioni e pesi
A mm 216 216 216 216 216 216 216 216
B mm 1122 1122 1122 1122 1122 1122 1122 1122
C mm 453 453 453 453 453 453 558 558
D mm 1147 1147 1147 1147 1147 1147 1147 1147
Peso netto kg 30,0 31,0 30,0 31,0 30,0 31,0 32,0 32,0
