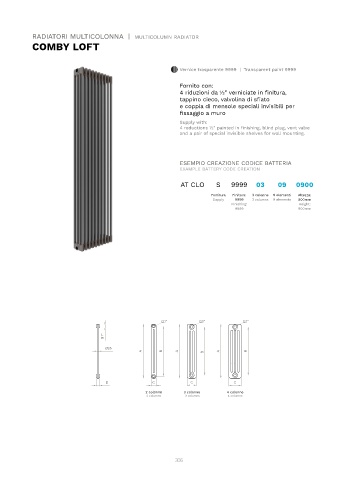

RADIATORI MULTICOLONNA | MULTICOLUMN RADIATOR RADIATORI MULTICOLONNA | MULTICOLUMN RADIATOR
COMBY LOFT COMBY LOFT

Vernice trasparente 9999 | Transparent paint 9999 2 colonne | 2 columns
A mm B mm C mm D mm
Fornito con: Codice Tipo Altezza Interasse Profondità Larghezza KG LT W∆T W∆T W∆T €
Depth
Height
Width
Wheelbase
4 riduzioni da ½” verniciate in finitura, Code Type 30°C 40°C 50°C
tappino cieco, valvolina di sfiato ATCLO S 9999 02 01 0600 2/600 592 535 66 45 0,96 0,57 23 33 44 26,30
e coppia di mensole speciali invisibili per ATCLO S 9999 02 01 0900 2/900 892 835 66 45 1,35 0,81 33 48 64 29,86
fissaggio a muro ATCLO S 9999 02 01 1000 2/1000 992 935 66 45 1,49 0,88 37 53 70 31,73
Supply with: ATCLO S 9999 02 01 1500 2/1500 1492 1435 66 45 2,11 1,28 55 78 104 43,93
4 reductions ½” painted in finishing, blind plug, vent valve ATCLO S 9999 02 01 1800 2/1800 1792 1735 66 45 2,51 1,51 65 94 124 47,77
and a pair of special invisible shelves for wall mounting.
ATCLO S 9999 02 01 2000 2/2000 1992 1935 66 45 2,79 1,67 72 104 139 52,94

3 colonne | 3 columns
ESEMPIO CREAZIONE CODICE BATTERIA A mm B mm C mm D mm
EXAMPLE BATTERY CODE CREATION
Codice Tipo Altezza Interasse Profondità Larghezza KG LT W∆T W∆T W∆T €
Code Type Height Wheelbase Depth Width 30°C 40°C 50°C
AT CLO S 9999 03 09 0900 ATCLO S 9999 03 01 0500 3/500 492 435 107 45 1,2 0,74 27 39 52 30,66
Fornitura Finitura: 3 colonne 9 elementi Altezza: ATCLO S 9999 03 01 0560 3/560 557 500 107 45 1,4 0,82 30 44 58 29,40
Supply 9999 3 columns 9 elements 900mm ATCLO S 9999 03 01 0600 3/600 592 535 107 45 1,40 0,90 32 46 62 25,84
Finishing: Height:
9999 900mm ATCLO S 9999 03 01 0630 3/630 629 572 107 45 1,49 0,90 33 48 65 31,71
ATCLO S 9999 03 01 0660 3/660 657 600 107 45 1,56 0,94 35 51 68 25,90
ATCLO S 9999 03 01 0680 3/680 680 623 107 45 1,60 0,97 36 52 70 27,17
ATCLO S 9999 03 01 0750 3/750 742 685 107 45 1,72 1,03 39 56 75 28,56
ATCLO S 9999 03 01 0860 3/860 857 800 107 45 1,95 1,15 44 64 86 31,19
ATCLO S 9999 03 01 0870 3/870 870 813 107 45 1,97 1,17 45 65 87 31,21
ATCLO S 9999 03 01 0900 3/900 892 835 107 45 2,00 1,20 46 67 89 32,55
ATCLO S 9999 03 01 1000 3/1000 992 935 107 45 2,24 1,28 50 73 98 35,84
ATCLO S 9999 03 01 1500 3/1500 1492 1435 107 45 3,30 1,88 72 106 142 58,39
ATCLO S 9999 03 01 1800 3/1800 1792 1735 107 45 3,92 2,31 85 125 168 67,67
ATCLO S 9999 03 01 2000 3/2000 1992 1935 107 45 4,40 2,60 94 137 185 73,00

4 colonne | 4 columns
A mm B mm C mm D mm

Codice Tipo Altezza Interasse Profondità Larghezza KG LT W∆T W∆T W∆T €
Code Type Height Wheelbase Depth Width 30°C 40°C 50°C
ATCLO S 9999 04 01 0500 4/500 492 435 148 45 1,7 0,98 36 51 68 33,19
ATCLO S 9999 04 01 0560 4/560 557 500 148 45 1,8 1,08 40 57 76 34,18
ATCLO S 9999 04 01 0600 4/600 592 535 148 45 1,9 1,14 42 60 80 30,54
ATCLO S 9999 04 01 0630 4/630 629 572 148 45 2,0 1,19 44 63 84 36,32
ATCLO S 9999 04 01 0660 4/660 657 600 148 45 2,1 1,24 46 66 88 31,87
ATCLO S 9999 04 01 0680 4/680 680 623 148 45 2,2 1,27 47 68 91 31,84
ATCLO S 9999 04 01 0750 4/750 742 685 148 45 2,31 1,38 51 74 99 34,50
2 colonne 3 colonne 4 colonne
2 columns 3 columns 4 columns ATCLO S 9999 04 01 0860 4/860 857 800 148 45 2,56 1,56 58 84 113 36,50
ATCLO S 9999 04 01 0870 4/870 870 813 148 45 2,59 1,58 58 85 114 37,16
ATCLO S 9999 04 01 0900 4/900 892 835 148 45 2,67 1,62 60 87 117 39,13
ATCLO S 9999 04 01 1000 4/1000 992 935 148 45 2,95 1,76 66 96 129 42,48
ATCLO S 9999 04 01 1500 4/1500 1492 1435 148 45 4,35 2,56 92 136 184 67,68
ATCLO S 9999 04 01 1800 4/1800 1792 1735 148 45 5,15 3,02 108 160 217 78,31
ATCLO S 9999 04 01 2000 4/2000 1992 1935 148 45 5,71 3,34 119 176 238 87,62
