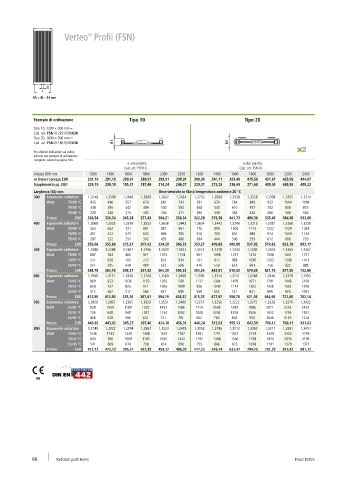

Page 66 - KERMI - LISTINO RADIATORI PIATTI 2023 - FIDRA

Verteo Profil (FSN)
®

50
X
NA = BL – 54 mm

Esempio di ordinazione Tipo 10 Tipo 20
Tipo 10, 2200 × 500 mm =
Cod. art. FSN10 220 0501X3K
Tipo 20, 1800 × 500 mm =
Cod. art. FSN20 180 0501X3K
Per ulteriori indicazioni sul codice
articolo con esempio di ordinazione
completo, vedere la pagina 108.
a una piastra, a due piastre,
Cod. art. FSN10… Cod. art. FSN20…
Altezza (BH) mm 1200 1400 1600 1800 2000 2200 1200 1400 1600 1800 2000 2200 2400
m lineare / prezzo EUR 291,18 291,18 299,91 299,91 299,91 299,91 309,90 341,11 383,48 415,59 431,67 453,09 494,87
Supplemento pz. EUR 239,19 239,19 155,31 187,46 214,24 246,37 229,31 273,25 326,69 371,68 405,95 450,95 485,22
Larghezza (BL) mm Rese termiche in Watt / temperatura ambiente 20 °C
300 Esponente radiatore 1,3148 1,3398 1,3649 1,3899 1,3667 1,3434 1,3753 1,3506 1,3258 1,3328 1,3398 1,3355 1,3311
Watt 75/65 °C 435 496 557 619 681 743 591 679 764 849 932 1014 1094
70/55 °C 348 395 442 489 540 592 468 540 610 677 742 808 873
55/45 °C 220 248 275 302 336 371 290 338 385 426 466 508 550
Prezzo EUR 326,54 326,54 245,28 277,43 304,21 336,34 322,28 375,58 441,73 496,36 535,45 586,88 633,68
400 Esponente radiatore 1,3068 1,3323 1,3578 1,3833 1,3638 1,3443 1,3634 1,3442 1,3249 1,3315 1,3381 1,3360 1,3339
Watt 75/65 °C 563 642 721 801 881 961 776 890 1003 1113 1222 1329 1435
70/55 °C 451 512 573 633 699 765 616 708 801 888 974 1059 1144
55/45 °C 287 322 357 392 435 480 384 444 506 559 612 666 720
Prezzo EUR 355,66 355,66 275,27 307,42 334,20 366,33 353,27 409,69 480,08 537,92 578,62 632,19 683,17
500 Esponente radiatore 1,2988 1,3248 1,3507 1,3766 1,3609 1,3452 1,3515 1,3378 1,3240 1,3302 1,3363 1,3365 1,3367
Watt 75/65 °C 687 784 880 977 1075 1174 957 1098 1237 1374 1508 1641 1771
70/55 °C 551 626 700 773 853 934 761 875 988 1096 1202 1308 1412
55/45 °C 351 395 438 480 532 586 476 550 624 691 756 822 888
Prezzo EUR 384,78 384,78 305,27 337,42 364,20 396,33 384,26 443,81 518,43 579,48 621,79 677,50 732,66
600 Esponente radiatore 1,2909 1,3172 1,3436 1,3700 1,3580 1,3460 1,3396 1,3314 1,3231 1,3288 1,3346 1,3370 1,3395
Watt 75/65 °C 809 922 1036 1150 1265 1381 1137 1304 1469 1631 1791 1948 2104
70/55 °C 650 737 825 911 1005 1099 906 1040 1174 1302 1428 1553 1676
55/45 °C 415 467 517 566 627 689 569 655 741 821 899 976 1053
Prezzo EUR 413,90 413,90 335,26 367,41 394,19 426,32 415,25 477,92 556,78 621,03 664,95 722,80 782,14
700 Esponente radiatore 1,2829 1,3097 1,3365 1,3633 1,3551 1,3469 1,3277 1,3250 1,3222 1,3275 1,3328 1,3376 1,3423
Watt 75/65 °C 928 1059 1189 1320 1452 1586 1314 1508 1699 1886 2071 2253 2433
70/55 °C 746 848 948 1047 1154 1262 1049 1204 1358 1506 1652 1795 1937
55/45 °C 478 538 596 652 721 791 662 760 858 950 1040 1129 1216
Prezzo EUR 443,02 443,02 365,25 397,40 424,18 456,31 446,24 512,03 595,13 662,59 708,12 768,11 831,63
800 Esponente radiatore 1,2749 1,3022 1,3294 1,3567 1,3523 1,3478 1,3158 1,3186 1,3213 1,3262 1,3311 1,3381 1,3451
Watt 75/65 °C 1046 1193 1340 1488 1637 1787 1491 1711 1927 2139 2349 2555 2759
70/55 °C 843 956 1069 1182 1301 1422 1193 1368 1540 1708 1874 2036 2196
55/45 °C 541 609 674 738 814 890 755 866 973 1078 1181 1279 1377
Prezzo EUR 472,13 472,13 395,24 427,39 454,17 486,30 477,23 546,14 633,47 704,15 751,29 813,42 881,12

08

66 Radiatori piatti Kermi Prezzi I/2023
