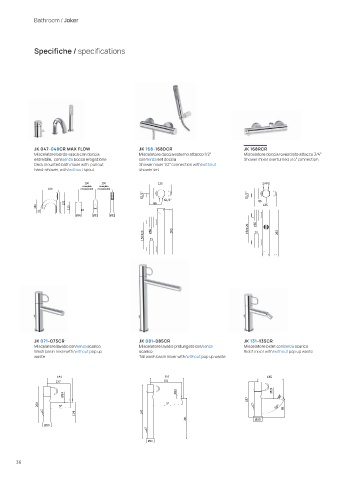

Page 37 - PAFFONI - CATALOGO 2021 - FIDRA

Bathroom / Joker

Specifiche / specifications Accessori / accessories

JK 047-048CR MAX FLOW JK 168-168DCR JK 168RCR PBOX 001 JK BOX010CR JK BOX015CR
Miscelatore bordo vasca con doccia Miscelatore doccia esterno attacco 1/2” Miscelatore doccia rovesciato attacco 3/4” Set incasso universale per miscelatori doccia Set esterno miscelatore incasso Set esterno miscelatore incasso
estraibile, con/senza bocca erogazione con/senza set doccia Shower mixer overturned 3/4” connection Universal Concealed Box for mixers doccia senza deviatore doccia con deviatore
Deck mounted bath mixer with pull out Shower mixer 1/2” connection with/without External set for concealed shower External set for concealed shower
hand-shower, with/without spout shower set mixer without diverter mixer with diverter

150 150 125 3/4"G 137 max. 90
consigliata consigliata
160 recommended recommended 112 min. 65 Ø173 Ø173
G1/2" G1/2" G 1/2"
222 66 G1/2" 66 125 60
150 120 G 1/2"
51
Ø60 Ø52 Ø52 ∅60 147 120 G 1/2" 119 131

150±20 25 ∅60 263 150±20 25 263 G 1/2" 13 13

* * *
Da abbinare solo con Da abbinare solo con Da abbinare solo con
JK BOX010 - JK BOX015 PBOX 001 PBOX 001
To be completed only with To be completed only with To be completed only with
JK BOX010 - JK BOX015 PBOX 001 PBOX 001

JK 071-075CR JK 081-085CR JK 131-135CR Finiture / finishes
Miscelatore lavabo con/senza scarico Miscelatore lavabo prolungato con/senza Miscelatore bidet con/senza scarico
Wash basin mixerwith/without pop up scarico Bidet mixer with/without pop up waste
waste Tall wash basin mixer with/without pop up waste

141 216 135
127 202

Ø24 Ø24 Ø24
187
200 5° 5° 65° 98
114 347 CR NO
Cromo
Nero opaco
261 Ø50 Chrome plated Matt black
Ø50
Ø50

36 37
