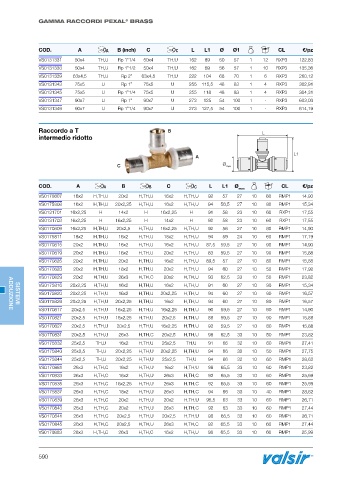

Page 592 - VALSIR - LISTINO ITS 2024 - FIDRA

GAMMA RACCORDI PEXAL BRASS
®

COD. A A B (inch) C C L L1 Ø Ø1 CL €/pz
VS0131331 50x4 TH,U Rp 1”1/4 50x4 TH,U 162 89 50 57 1 12 RXP3 122,83
VS0131333 50x4 TH,U Rp 1”1/2 50x4 TH,U 162 89 56 57 1 10 RXP3 135,36
VS0131339 63x4,5 TH,U Rp 2” 63x4,5 TH,U 222 104 68 70 1 6 RXP3 260,12
VS0131343 75x5 U Rp 1” 75x5 U 255 115,5 48 83 1 4 RXP3 302,91
VS0131345 75x5 U Rp 1”1/4 75x5 U 255 118 48 83 1 4 RXP3 304,31
VS0131347 90x7 U Rp 1” 90x7 U 273 125 54 100 1 - RXP3 603,03
VS0131349 90x7 U Rp 1”1/4 90x7 U 273 127,5 54 100 1 - RXP3 614,19

Raccordo a T B L
intermedio ridotto

L1
A
C Ø max

COD. A A B B C C L L1 Ø max CL €/pz
VS0170807 16x2 H,TH,U 20x2 H,TH,U 16x2 H,TH,U 92 57 27 10 80 RMP1 14,90
VS0175808 16x2 H,TH,U 20x2,25 H,TH,U 16x2 H,TH,U 94 56,5 27 10 80 RMP1 15,34
VS0131701 16x2,25 H 14x2 H 16x2,25 H 91 58 23 10 60 RXP1 17,55
VS0131703 16x2,25 H 16x2,25 H 14x2 H 92 58 23 10 60 RXP1 17,55
VS0170809 16x2,25 H,TH,U 20x2,5 H,TH,U 16x2,25 H,TH,U 92 58 27 10 80 RMP1 14,90
VS0175811 18x2 H,TH,U 16x2 H,TH,U 18x2 H,TH,U 94 59 24 10 60 RMP1 17,19
VS0170815 20x2 H,TH,U 16x2 H,TH,U 16x2 H,TH,U 87,5 59,5 27 10 90 RMP1 14,90
VS0170819 20x2 H,TH,U 16x2 H,TH,U 20x2 H,TH,U 83 59,5 27 10 90 RMP1 15,88
VS0170825 20x2 H,TH,U 20x2 H,TH,U 16x2 H,TH,U 89,5 57 27 10 80 RMP1 15,88
VS0170823 20x2 H,TH,U 18x2 H,TH,U 20x2 H,TH,U 94 60 27 10 50 RMP1 17,92
VS0170829 20x2 H,TH,U 26x3 H,TH,C 20x2 H,TH,U 93 62,5 33 10 50 RMP1 23,82
VS0175816 20x2,25 H,TH,U 16x2 H,TH,U 16x2 H,TH,U 91 60 27 10 90 RMP1 15,34
VS0175820 20x2,25 H,TH,U 16x2 H,TH,U 20x2,25 H,TH,U 94 60 27 10 90 RMP1 16,57
VS0175826 20x2,25 H,TH,U 20x2,25 H,TH,U 16x2 H,TH,U 94 60 27 10 80 RMP1 16,57
SISTEMI
VS0170817 20x2,5 H,TH,U 16x2,25 H,TH,U 16x2,25 H,TH,U 90 59,5 27 10 90 RMP1 14,90
ADDUZIONE
VS0170821 20x2,5 H,TH,U 16x2,25 H,TH,U 20x2,5 H,TH,U 88 59,5 27 10 90 RMP1 15,88
VS0170827 20x2,5 H,TH,U 20x2,5 H,TH,U 16x2,25 H,TH,U 92 59,5 27 10 80 RMP1 15,88
VS0170831 20x2,5 H,TH,U 26x3 H,TH,C 20x2,5 H,TH,U 98 62,5 33 10 50 RMP1 23,82
VS0175832 25x2,5 TH,U 16x2 H,TH,U 25x2,5 TH,U 91 66 32 10 60 RMP1 27,41
VS0175840 25x2,5 TH,U 20x2,25 H,TH,U 20x2,25 H,TH,U 94 66 32 10 50 RMP1 27,75
VS0175844 25x2,5 TH,U 20x2,25 H,TH,U 25x2,5 TH,U 94 66 32 10 60 RMP1 28,62
VS0170881 26x3 H,TH,C 16x2 H,TH,U 16x2 H,TH,U 98 65,5 33 10 60 RMP1 23,82
VS0170833 26x3 H,TH,C 16x2 H,TH,U 26x3 H,TH,C 92 65,5 33 10 60 RMP1 25,99
VS0170835 26x3 H,TH,C 16x2,25 H,TH,U 26x3 H,TH,C 92 65,5 33 10 60 RMP1 25,99
VS0175837 26x3 H,TH,C 18x2 H,TH,U 26x3 H,TH,C 94 66 33 10 40 RMP1 28,62
VS0170839 26x3 H,TH,C 20x2 H,TH,U 20x2 H,TH,U 95,5 63 33 10 60 RMP1 26,71
VS0170843 26x3 H,TH,C 20x2 H,TH,U 26x3 H,TH,C 92 63 33 10 60 RMP1 27,44
VS0170841 26x3 H,TH,C 20x2,5 H,TH,U 20x2,5 H,TH,U 98 65,5 33 10 60 RMP1 26,71
VS0170845 26x3 H,TH,C 20x2,5 H,TH,U 26x3 H,TH,C 92 65,5 33 10 60 RMP1 27,44
VS0170883 26x3 H,TH,C 26x3 H,TH,C 16x2 H,TH,U 98 65,5 33 10 60 RMP1 25,99

590
