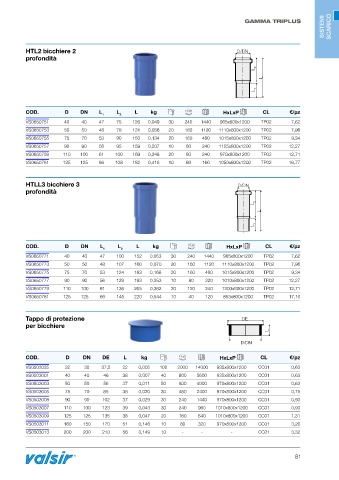

Page 83 - VALSIR - LISTINO ITS 2024 - FIDRA

SISTEMI SISTEMI SCARICO SCARICO
GAMMA TRIPLUS

HTL2 bicchiere 2 D/DN
profondità

L 2
L
L 1

COD. D DN L L L kg HxLxP CL €/pz
1 2
VS0650751 40 40 47 75 126 0,049 30 240 1440 965x800x1200 TP02 7,62
VS0650753 50 50 48 79 131 0,056 20 160 1120 1110x800x1200 TP02 7,96
VS0650755 75 70 53 90 150 0,134 20 160 480 1015x800x1200 TP02 9,34
VS0650757 90 90 56 95 159 0,207 10 60 240 1155x800x1200 TP02 12,27
VS0650759 110 100 61 100 169 0,348 20 80 240 970x800x1200 TP02 12,71
VS0650761 125 125 66 108 182 0,418 10 80 160 1050x800x1200 TP02 16,77

HTLL3 bicchiere 3 D/DN
profondità

L 2
L

L 1

COD. D DN L L L kg HxLxP CL €/pz
1 2
VS0650771 40 40 47 100 152 0,053 30 240 1440 965x800x1200 TP02 7,62
VS0650773 50 50 48 107 160 0,070 20 160 1120 1110x800x1200 TP02 7,96
VS0650775 75 70 53 124 183 0,168 20 160 480 1015x800x1200 TP02 9,34
VS0650777 90 90 56 129 193 0,253 10 80 320 1010x800x1200 TP02 12,27
VS0650779 110 100 61 136 205 0,382 20 120 240 1200x800x1200 TP02 12,71
VS0650781 125 125 66 145 220 0,544 10 40 120 853x800x1200 TP02 17,10

Tappo di protezione DE
per bicchiere
L
D/DN

COD. D DN DE L kg HxLxP CL €/pz
VS0503035 32 30 37,5 22 0,005 100 2000 14000 935x800x1200 CC01 0,63
VS0503001 40 40 46 38 0,007 40 800 5600 935x800x1200 CC01 0,63
VS0503003 50 50 56 37 0,011 50 800 4000 970x800x1200 CC01 0,63
VS0503005 75 70 85 38 0,020 30 480 2400 970x800x1200 CC01 0,75
VS0503008 90 90 102 37 0,029 30 240 1440 970x800x1200 CC01 0,93
VS0503007 110 100 123 39 0,043 30 240 960 1010x800x1200 CC01 0,93
VS0503009 125 125 135 38 0,047 20 160 640 1010x800x1200 CC01 1,31
VS0503011 160 150 170 51 0,146 10 80 320 970x800x1200 CC01 3,20
VS0503013 200 200 210 56 0,149 10 - - - CC01 3,32

81
