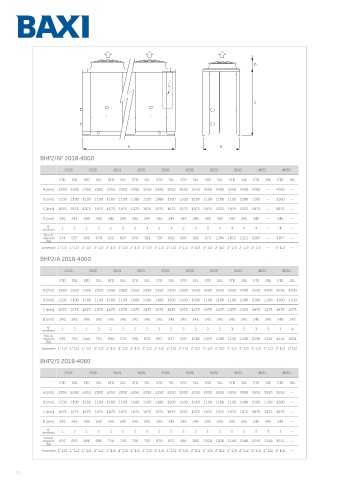

Page 62 - BAXI - SISTEMI IBRIDI COMMERCIALI

D

C

A B
BHP2/AF 2018-4060

2018 2020 2024 2026 2030 3036 3039 3045 4052 4060
STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL
A [mm] 2350 2350 2350 2350 2350 2350 2350 3550 2350 3550 3550 3550 3550 4700 3550 4700 4700 --- 4700 ---
B [mm] 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 --- 1100 ---
C [mm] 1675 1675 1975 1975 1975 1975 1975 1675 1975 1675 1675 1975 1975 1975 1975 1975 1975 --- 1975 ---

D [mm] 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 --- 245 ---
N°
ventilatori 1 2 1 2 2 2 2 3 2 3 2 3 3 4 3 4 4 --- 4 ---
Peso di
trasporto 574 637 606 678 625 697 679 781 728 830 836 992 973 1284 1015 1312 1305 --- 1367 ---
[kg]
Connessioni 1" 1/2 1" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 --- 2" 1/2 ---
BHP2/A 2018-4060

2018 2020 2024 2026 2030 3036 3039 3045 4052 4060
STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL
A [mm] 2350 2350 2350 2350 2350 2350 2350 2350 2350 2350 2350 3550 3550 3550 3550 4700 3550 4700 3550 4700
B [mm] 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100
C [mm] 1675 1675 1675 1675 1675 1675 1975 1975 1975 1975 1975 1975 1975 1975 1975 1975 1975 1975 1975 1975

D [mm] 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245
N° 1 2 1 2 2 2 2 2 2 2 2 3 2 3 3 3 3 3 3 4
ventilatori
Peso di
trasporto 635 755 644 764 693 773 760 870 807 877 926 1186 1076 1206 1126 1436 1235 1545 1414 1604
[kg]
Connessioni 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2
BHP2/S 2018-4060

2018 2020 2024 2026 2030 3036 3039 3045 4052 4060

STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL STD SSL
A [mm] 2350 2350 2350 2350 2350 2350 2350 2350 2350 2350 2350 2350 2350 3550 2350 3550 3550 3550 3550 ---
B [mm] 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 1100 ---
C [mm] 1675 1675 1675 1675 1675 1675 1675 1675 1975 1975 1975 1975 1975 1975 1975 1975 1975 1975 1975 ---
D [mm] 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 245 ---
N° 1 2 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 ---
ventilatori
Peso di
trasporto 655 655 686 686 729 729 750 750 870 870 966 966 1020 1020 1140 1140 1249 1249 1511 ---
[kg]
Connessioni 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 1" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 ---

62
