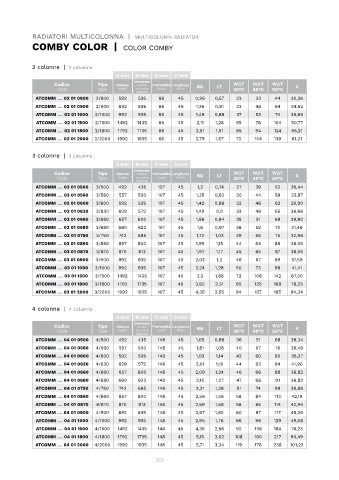

Page 301 - ERCOS - LISTINO BATHROOM EXPERIENCE

RADIATORI MULTICOLONNA | MULTICOLUMN RADIATOR RADIATORI MULTICOLONNA | MULTICOLUMN RADIATOR
COMBY COLOR | COLOR COMBY COMBY COLOR | COLOR COMBY

FINITURE | FINISHING 2 colonne | 2 columns
A mm B mm C mm D mm
Interasse
Codice Tipo Altezza Centre Profondità Larghezza KG LT W∆T W∆T W∆T €
9011 4900 0355 0345 Code Type Height to centre Depth Width 30°C 40°C 50°C
distance
ATCOMM .... 02 01 0600 2/600 592 535 66 45 0,96 0,57 23 33 44 30,36
ATCOMM .... 02 01 0900 2/900 892 835 66 45 1,35 0,81 33 48 64 34,52
0358 0356 0215 0861 ATCOMM .... 02 01 1000 2/1000 992 935 66 45 1,49 0,88 37 53 70 36,66
ATCOMM .... 02 01 1500 2/1500 1492 1435 66 45 2,11 1,28 55 78 104 50,77
ATCOMM .... 02 01 1800 2/1800 1792 1735 66 45 2,51 1,51 65 94 124 55,21
ATCOMM .... 02 01 2000 2/2000 1992 1935 66 45 2,79 1,67 72 104 139 61,21
Fornito con:
4 riduzioni da ½” verniciate in finitura, tappino
cieco, valvolina di sfiato, e coppia di mensole 3 colonne | 3 columns
speciali invisibili per fissaggio a muro A mm B mm C mm D mm
Interasse
Supplied with: Codice Tipo Altezza Centre Profondità Larghezza KG LT W∆T W∆T W∆T €
4 reductions ½” painted in finishing, Code Type Height to centre Depth Width 30°C 40°C 50°C
distance
blind plug, vent valve and a pair of special invisible shelves ATCOMM .... 03 01 0500 3/500 492 435 107 45 1,2 0,74 27 39 52 35,44
for wall mounting.
ATCOMM .... 03 01 0560 3/560 557 500 107 45 1,35 0,82 30 44 58 33,97
ATCOMM .... 03 01 0600 3/600 592 535 107 45 1,42 0,86 32 46 62 29,90
ATCOMM .... 03 01 0630 3/630 629 572 107 45 1,49 0,9 33 48 65 36,66
ESEMPIO CREAZIONE CODICE BATTERIA ATCOMM .... 03 01 0660 3/660 657 600 107 45 1,56 0,94 35 51 68 29,90
EXAMPLE BATTERY CODE CREATION ATCOMM .... 03 01 0680 3/680 680 623 107 45 1,6 0,97 36 52 70 31,46
ATCOMM .... 03 01 0750 3/750 742 685 107 45 1,72 1,03 39 56 75 32,98
AT COM M 0215 03 09 0900 ATCOMM .... 03 01 0860 3/860 857 800 107 45 1,95 1,15 44 64 86 36,05

Fornitura Finitura: 3 colonne 9 elementi Altezza: ATCOMM .... 03 01 0870 3/870 870 813 107 45 1,97 1,17 45 65 87 36,05
Supply 0215 3 columns 9 elements 900mm
Finishing: Height: ATCOMM .... 03 01 0900 3/900 892 835 107 45 2,03 1,2 46 67 89 37,59
0215 900mm
ATCOMM .... 03 01 1000 3/1000 992 935 107 45 2,24 1,28 50 73 98 41,41
ATCOMM .... 03 01 1500 3/1500 1492 1435 107 45 3,3 1,88 72 106 142 67,50
ATCOMM .... 03 01 1800 3/1800 1792 1735 107 45 3,92 2,31 85 125 168 78,23
ATCOMM .... 03 01 2000 3/2000 1992 1935 107 45 4,35 2,55 94 137 185 84,34

4 colonne | 4 columns
A mm B mm C mm D mm
Interasse
Codice Tipo Altezza Centre Profondità Larghezza KG LT W∆T W∆T W∆T €
Code Type Height to centre Depth Width 30°C 40°C 50°C
distance
ATCOMM .... 04 01 0500 4/500 492 435 148 45 1,65 0,98 36 51 68 38,34
ATCOMM .... 04 01 0560 4/560 557 500 148 45 1,81 1,08 40 57 76 39,48
ATCOMM .... 04 01 0600 4/600 592 535 148 45 1,93 1,14 42 60 80 35,27
ATCOMM .... 04 01 0630 4/630 629 572 148 45 2,01 1,19 44 63 84 41,96
ATCOMM .... 04 01 0660 4/660 657 600 148 45 2,09 1,24 46 66 88 36,82
ATCOMM .... 04 01 0680 4/680 680 623 148 45 2,15 1,27 47 68 91 36,82
ATCOMM .... 04 01 0750 4/750 742 685 148 45 2,31 1,38 51 74 99 39,88
2 colonne 3 colonne 4 colonne
2 columns 3 columns 4 columns ATCOMM .... 04 01 0860 4/860 857 800 148 45 2,56 1,56 58 84 113 42,19
ATCOMM .... 04 01 0870 4/870 870 813 148 45 2,59 1,58 58 85 114 42,94
ATCOMM .... 04 01 0900 4/900 892 835 148 45 2,67 1,62 60 87 117 45,26
ATCOMM .... 04 01 1000 4/1000 992 935 148 45 2,95 1,76 66 96 129 49,08
ATCOMM .... 04 01 1500 4/1500 1492 1435 148 45 4,35 2,56 92 136 184 78,23
ATCOMM .... 04 01 1800 4/1800 1792 1735 148 45 5,15 3,02 108 160 217 90,49
ATCOMM .... 04 01 2000 4/2000 1992 1935 148 45 5,71 3,34 119 176 238 101,23
