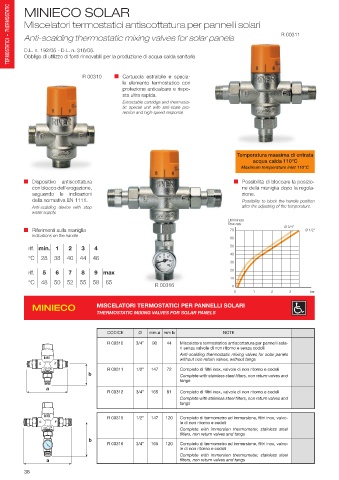

P. 36

THERMOSTATIC  MINIECO SOLAR


         Miscelatori termostatici antiscottatura per pannelli solari

    TERMOSTATICI  –  Anti-scalding thermostatic mixing valves for solar panels                      R 00311

         D.L. n. 192/05 - D.L. n. 316/06.
         Obbligo di utilizzo di fonti rinnovabili per la produzione di acqua calda sanitaria


                              R 00310       Cartuccia estraibile e specia-
                                            le elemento termostatico con
                                            protezione anticalcare e rispo-
                                            sta ultra rapida.
                                            Extractable cartridge and thermosta-
                                            tic special unit with anti-scale pro-
                                            tection and high-speed response.








                                                                                    Temperatura massima di entrata
                                                                                          acqua calda 110°C
                                                                                      Maximum temperature inlet 110°C

            Dispositivo  antiscottatura                                               Possibilità di bloccare la posizio-
            con blocco dell’erogazione,                                               ne della maniglia dopo la regola-
            seguendo  le  indicazioni                                                 zione.
            della normativa EN 1111.                                                  Possibility to block the handle position
            Anti-scalding device with stop                                            after the adjusting of the temperature.
            water supply.
                                                                                 Litri/minuto
                                                                                 Flow rate
                                                                                                     Ø 3/4”
            Riferimenti sulla maniglia                                            70                        Ø 1/2”
            Indications on the handle
                                                                                  60
                                                                                  50
           rif.  min.  1  2   3   4
                                                                                  40
           °C  28   38   40  44   46
                                                                                  30
                                                                                  20
           rif.  5   6   7    8   9  max
                                                                                  10
           °C  48   50   52  55   58  65
                                                       R 00316                     0
                                                                                   0      1     2      3      bar
                                   MISCELATORI TERMOSTATICI PER PANNELLI SOLARI
            MINIECO
                                   THERMOSTATIC MIXING VALVES FOR SOLAR PANELS

                                       CODICE     Ø  mm a mm b                 NOTE

                                       R 00310   3/4”  90   44  Miscelatore termostatico antiscottatura per pannelli sola-
                                                                ri senza valvole di non ritorno e senza codoli
                                                                Anti-scalding thermostatic mixing valves for solar panels
                5,9(5
                                                                without non return valves, without tangs
               C    F
                                       R 00311   1/2”  147  72  Completo di filtri inox, valvole di non ritorno e codoli
                                b                               Complete with stainless steel filters, non return valves and
                                                                tangs
                 a
                                       R 00312   3/4”  165  81  Completo di filtri inox, valvole di non ritorno e codoli
                                                                Complete with stainless steel filters, non return valves and
                                                                tangs

                 5,9(5
                                       R 00315   1/2”  147  120  Completo di termometro ad immersione, filtri inox, valvo-
               C    F                                           le di non ritorno e codoli
                                                                Complete with immersion thermometer, stainless steel
                                                                filters, non return valves and tangs
                                b
                                       R 00316   3/4”  165  120  Completo di termometro ad immersione, filtri inox, valvo-
                                                                le di non ritorno e codoli
                                                                Complete with immersion thermometer, stainless steel
                 a                                              filters, non return valves and tangs
