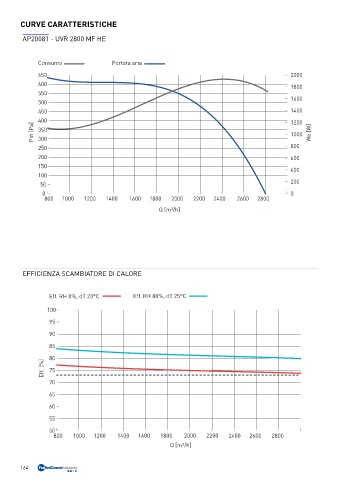

CURVE CARATTERISTICHE
AP20081 - UVR 2800 MF HE
Consumo Portata aria
650 2000
600 1800
550
500 1600
450 1400
Pst [Pa] 400 1200 We [W]
350
1000
300
250 800
200 600
150 400
100
50 200
0 0
800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800
Q [m³/h]
EFFICIENZA SCAMBIATORE DI CALORE
Eff. RH 0%, dT 20°C Eff. RH 80%, dT 25°C
100
95
90
85
80
Eff. [%] 75
70
65
60
55
50
800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800
Q [m³/h]
