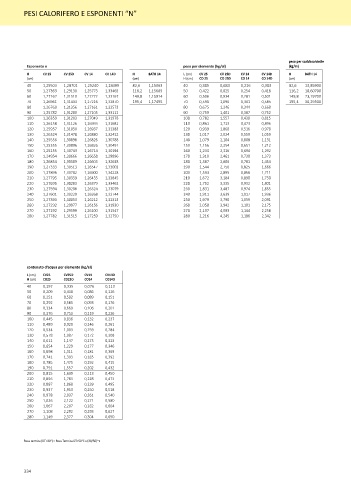

Page 334 - TUBES - LISTINO 2023

PESI CALORIFERO E ESPONENTI “N”

peso per scaldasalviette
Esponente n peso per elemento (kg/el) (kg/m)
H CV 25 CV 25D CV 14 CV 14D H BATH 14 L (cm) CV 25 CV 25D CV 14 CV 14D H BATH 14
(cm) (cm) H (cm) CO 25 CO 25D CO 14 CO 14D (cm)
40 1,25503 1,28701 1,25240 1,28499 82,6 1,15063 40 0,385 0,684 0,216 0,383 82,6 13,85900
50 1,27363 1,29130 1,25773 1,33465 116,2 1,15665 50 0,422 0,825 0,254 0,418 116,2 18,60700
60 1,27162 1,31510 1,27272 1,33167 149,8 1,15914 60 0,506 0,934 0,281 0,501 149,8 23,19700
70 1,26961 1,31433 1,27216 1,32870 195,4 1,17495 70 0,590 1,090 0,301 0,585 195,4 30,29500
80 1,26760 1,31356 1,27161 1,32573 80 0,675 1,246 0,344 0,668
90 1,25782 1,31280 1,27105 1,33112 90 0,759 1,401 0,387 0,752
100 1,26359 1,31203 1,27049 1,31978 100 0,782 1,557 0,430 0,815
110 1,26158 1,31126 1,26993 1,31681 110 0,861 1,713 0,473 0,896
120 1,25957 1,31050 1,26937 1,31383 120 0,939 1,868 0,516 0,978
130 1,26324 1,31478 1,26880 1,32412 130 1,017 2,024 0,559 1,059
140 1,25556 1,30896 1,26826 1,30788 140 1,079 2,104 0,608 1,131
150 1,25355 1,30896 1,26826 1,30491 150 1,156 2,254 0,651 1,212
160 1,25155 1,30743 1,26714 1,30194 160 1,233 2,316 0,694 1,292
170 1,24954 1,30666 1,26658 1,29896 170 1,310 2,461 0,738 1,373
180 1,26854 1,30589 1,26603 1,32638 180 1,387 2,606 0,781 1,454
190 1,27333 1,30513 1,26547 1,33003 190 1,544 2,750 0,825 1,666
200 1,27896 1,30782 1,26900 1,34228 200 1,593 2,895 0,868 1,711
210 1,27795 1,30359 1,26435 1,33845 210 1,672 3,184 0,890 1,750
220 1,27695 1,30283 1,26379 1,33462 220 1,752 3,335 0,932 1,801
230 1,27594 1,30206 1,26324 1,33079 230 1,831 3,487 0,974 1,855
240 1,27601 1,30229 1,26268 1,32744 240 1,911 3,639 1,017 1,936
250 1,27393 1,30053 1,26212 1,32313 250 1,979 3,790 1,059 2,091
260 1,27292 1,29977 1,26156 1,31930 260 2,058 3,942 1,101 2,175
270 1,27192 1,29599 1,26100 1,31547 270 2,137 4,093 1,144 2,258
280 1,27782 1,31515 1,27259 1,32750 280 2,216 4,245 1,186 2,342

contenuto d’acqua per elemento (kg/el)
L (cm) CV25 CV25D CV14 CV14D
H (cm) CO25 CO25D CO14 CO14D
40 0,197 0,335 0,076 0,113
50 0,209 0,438 0,086 0,126
60 0,251 0,502 0,089 0,151
70 0,292 0,585 0,093 0,176
80 0,334 0,669 0,106 0,201
90 0,376 0,753 0,119 0,226
100 0,445 0,836 0,132 0,237
110 0,489 0,920 0,146 0,261
120 0,534 1,003 0,159 0,284
130 0,578 1,087 0,172 0,308
140 0,611 1,147 0,175 0,323
150 0,654 1,229 0,177 0,346
160 0,698 1,311 0,181 0,369
170 0,741 1,393 0,185 0,392
180 0,785 1,475 0,192 0,415
190 0,791 1,557 0,202 0,432
200 0,815 1,639 0,213 0,450
210 0,856 1,783 0,228 0,473
220 0,897 1,868 0,239 0,495
230 0,937 1,953 0,250 0,518
240 0,978 2,037 0,261 0,540
250 1,026 2,122 0,271 0,580
260 1,067 2,207 0,282 0,604
270 1,108 2,292 0,293 0,627
280 1,149 2,377 0,304 0,650

Resa termica (DT=30°) = Resa Termica DT=50°C x (30/50)^n

334
