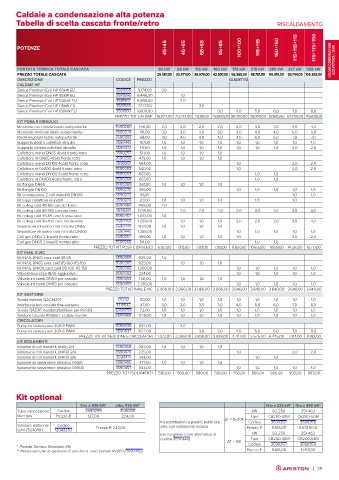

Page 35 - ARISTON - LISTINO 05-2022

Caldaie a condensazione alta potenza
Tabella di scelta cascata fronte/retro RISCALDAMENTO

POTENZE 45+45 46+65 65+65 85+85 100+100 115+115 150+150 115+115+115 115+115+150

PORTATA TERMICA TOTALE CASCATA 82 kW 99 kW 116 kW 160 kW 176 kW 218 kW 280 kW 327 kW 358 kW CALDAIE CONDENSAZIONE ALTA POTENZA > 35kW
PREZZO TOTALE CASCATA 26.467,00 33.471,00 36.978,00 42.597,00 56.365,00 68.761,00 80.410,00 93.744,00 105.393,00
DESCRIZIONE CODICE PREZZO QUANTITÀ
CALDAIE HP
Genus Premium Evo HP 65kW EU 3581565 5.174,00 3,0
Genus Premium Evo HP 85kW EU 3581566 6.446,00 1,0
Genus Premium Evo HP 100kW EU 3581567 6.899,00 2,0
Genus Premium Evo HP 115kW EU 3581568 7.727,00 3,0
Genus Premium Evo HP 150kW EU 3581569 9.600,00 3,0 4,0 5,0 6,0 7,0 8,0
PREZZO TOT CALDAIE 15.522,00 20.244,00 23.181,00 28.800,00 38.400,00 48.000,00 57.600,00 67.200,00 76.800,00
KIT POSA E IDRAULICI
Montante orizzontale telaio autoportante 3590280 156,00 2,0 2,0 2,0 2,0 2,0 3,0 3,0 4,0 4,0
Montante verticale telaio autoportante 3590279 131,00 3,0 3,0 3,0 3,0 3,0 4,0 4,0 5,0 5,0
Piede angolare telaio autoportante 3590283 68,00 4,0 4,0 4,0 4,0 4,0 6,0 6,0 7,0 7,0
Supporto destro collettori idraulici 3590443 167,00 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0
Supporto sinistro collettori idraulici 3590472 117,00 1,0 1,0 1,0 1,0 1,0 1,0 1,0 2,0 2,0
Collettore mand DN65 4cald fronte-retro 3590257 511,00 1,0 1,0 1,0 1,0
Collettore rit DN65 4cald fronte-retro 3590258 479,00 1,0 1,0 1,0 1,0
Collettore mand DN100 4cald fronte-retro 3590261 564,00 1,0 2,0 2,0
Collettore rit DN100 4cald fronte-retro 3590262 540,00 1,0 2,0 2,0
Collettore mand DN100 6cald fronte-retro 3590263 667,00 1,0 1,0
Collettore rit DN100 6cald fronte-retro 3590264 667,00 1,0 1,0
Kit flangia DN65 3590269 261,00 1,0 1,0 1,0 1,0
Kit flangia DN100 3590270 350,00 1,0 1,0 1,0 1,0 1,0
Kit connessione 2 coll mand/rit DN100 3590272 81,00 1,0 1,0
Kit tappi collettore mand/rit 3590273 29,00 1,0 1,0 1,0 1,0 1,0 1,0
Kit colleg cald 45-65 cascata linea 3590450 905,00 2,0
Kit colleg cald 85-150 cascata linea 3590451 1.015,00 2,0 2,0 2,0 2,0 3,0 3,0 4,0 4,0
Kit colleg cald 45-65 casc fronte-retro 3590452 1.043,00 1,0
Kit colleg cald 85-150 casc fronte-retro 3590453 1.209,00 1,0 1,0 1,0 2,0 2,0 3,0 3,0 4,0
Separatore idraulico cald cascata DN65 3590444 1.134,00 1,0 1,0 1,0 1,0
Separatore idraulico cald cascata DN100 3590445 1.288,00 1,0 1,0 1,0 1,0 1,0
Coll gas DN65 2 linea/4 fronte-retro 3590267 399,00 1,0 1,0 1,0 1,0 1,0 2,0 2,0
Coll gas DN65 3 linea/6 fronte-retro 3590268 511,00 1,0 1,0
PREZZO TOT KIT POSA E IDRAULICI 6.927,00 7.313,00 7.313,00 7.313,00 8.850,00 10.659,00 11.839,00 14.597,00 15.777,00
KIT INAIL E VIC
Kit INAIL DN65 casc cald 45-65 3590469 925,00 1,0
Kit INAIL DN65 casc cald 85-100-115-150 3590265 925,00 1,0 1,0 1,0
Kit INAIL DN100 casc cald 85-100-115-150 3590266 1.200,00 1,0 1,0 1,0 1,0 1,0
Valvola sicurezza INAIL aggiuntiva 3590302 224,00 1,0 1,0 1,0 1,0 1,0
Valvola int comb DN50 per cascate 3590454 1.141,00 1,0 1,0 1,0 1,0
Valvola int comb DN65 per cascate 3590455 2.216,00 1,0 1,0 1,0 1,0 1,0
PREZZO TOT KIT INAIL E VIC 2.066,00 2.066,00 2.066,00 2.066,00 3.640,00 3.640,00 3.640,00 3.640,00 3.640,00
KIT GESTIONE
Sonda esterna QAC34.101 171237 30,00 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0
Interfaccia bus cascata thw-siemens 3318642 47,00 3,0 3,0 3,0 3,0 4,0 5,0 6,0 7,0 8,0
Sonda QAZ36 mandata/bollitore per RVS63 12081759 72,00 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0
Gestore cascata RVS63 + scatola murale 3590468 1.129,00 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0
CIRCOLATORI
Pump kit stratos para 30/1-9 PWM 3590636 632,00 3,0
Pump kit stratos para 30/1-8 PWM 3590637 822,00 3,0 3,0 4,0 5,0 6,0 7,0 8,0
PREZZO TOT KIT GESTIONE E CIRCOLATORI 1.372,00 3.268,00 3.838,00 3.838,00 4.707,00 5.576,00 6.445,00 7.314,00 8.183,00
KIT ISOLAMENTI
Isolamenti coll mand/rit DN65 2/4 3590458 203,00 1,0 1,0 1,0 1,0
Isolamenti coll mand/rit DN100 2/4 3590470 225,00 1,0 2,0 2,0
Isolamenti coll mand/rit DN100 3/6 3590471 343,00 1,0 1,0
Isolamento separatore idraulico DN65 3590456 377,00 1,0 1,0 1,0 1,0
Isolamento separatore idraulico DN100 3590457 543,00 1,0 1,0 1,0 1,0 1,0
PREZZO TOT ISOLAMENTI 580,00 580,00 580,00 580,00 768,00 886,00 886,00 993,00 993,00

Kit optional
fino a 436 kW* oltre 436 kW* fino a 232 kW* fino a 436 kW*
Tubo connessione Codice 3590299 3590301 kW 82-250 251-462
filtro gas Prezzo € 127,00 224,00 Tipo CB200-30M CB200-50M
∆T = 15-20K
Kit scambiatore a piastre saldo-bra- Codice 3590357 3590358
Sensore ambiente Codice Prezzo € 223,00 sato con isolamento incluso Prezzo € 8.616,00 9.572,00 €
QAA75.610/101 12048253
(da scegliere come alternativa al kW 82-250 251-462
codice 3590444) Tipo CB200-30M CB200-64M
∆T = 10K Codice 3590357 3590359
* Portata Termica Nominale (Hi)
** Necessaria per la gestione di una terza zona tramite RVS63 (3590468) Prezzo € 8.616,00 11.401,00
| 35
