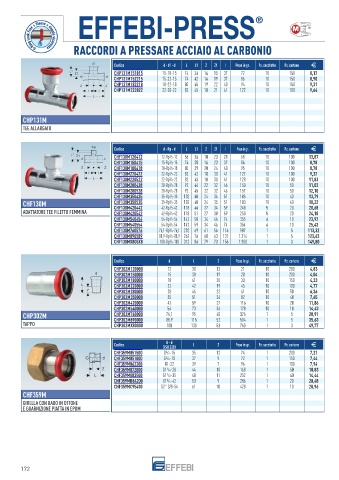

Page 172 - EFFEBI - LISTINO 09

EFFEBI-PRESS ®
®

RACCORDI A PRESSARE ACCIAIO AL CARBONIO
O-Ring Leak Free + Sleeve = doppia sicurezza

Codice d - d1 - d L L1 Z Z1 I Peso in gr. Pz. sacchetto Pz. cartone
CHP131M151815 15-18-15 74 36 16 15 37 72 10 150 8,17
CHP131M152215 15-22-15 74 42 16 19 37 86 10 150 8,90
CHP131M182218 18-22-18 80 45 19 22 40 94 10 150 9,31
CHP131M222822 22-28-22 82 45 18 21 41 122 10 100 9,64

CHP131M
TEE ALLARGATO

Codice d - Rp - d L L1 Z Z1 I Peso in gr. Pz. sacchetto Pz. cartone
CHF130M120412 12-Rp½-12 56 36 10 23 28 68 10 100 13,87
CHF130M150415 15-Rp½-15 74 38 16 23 37 84 10 100 8,78
CHF130M180418 18-Rp½-18 80 39 20 24 40 95 10 100 8,78
CHF130M220422 22-Rp½-22 82 42 18 30 41 127 10 100 9,32
CHF130M220522 22-Rp¾-22 82 43 18 30 41 128 10 100 11,83
CHF130M280428 28-Rp½-28 92 44 22 32 46 150 10 50 11,02
CHF130M280528 28-Rp¾-28 92 45 22 32 46 157 10 50 12,10
CHF130M350435 35-Rp½-35 102 48 24 36 51 185 10 40 13,79
CHF130M CHF130M350535 35-Rp¾-35 102 48 24 35 51 183 10 40 18,22
42-Rp½-42
CHF130M420442
118
34
27
46
20
20,68
5
59
248
ADATTATORE TEE FILETTO FEMMINA CHF130M420542 42-Rp¾-42 118 51 27 38 59 250 5 20 24,18
CHF130M540454 54-Rp½-54 142 58 34 46 74 355 6 10 23,92
CHF130M540554 54-Rp¾-54 142 59 34 46 74 354 6 10 25,43
CHF130M760576 76,1-Rp¾-76,1 232 69 61 56 116 987 1 5 113,32
CHF130M890589 88,9-Rp¾-88,9 262 76 68 63 131 1.314 1 5 123,62
CHF130MX805X8 108-Rp¾-108 312 86 79 73 156 1.900 1 3 149,80
Codice d L Z Peso in gr. Pz. sacchetto Pz. cartone
CHP302M120000 12 30 12 21 10 280 4,83
CHP302M150000 15 38 17 28 10 200 4,04
CHP302M180000 18 41 20 33 10 150 4,33
CHP302M220000 22 42 19 45 10 100 4,77
CHP302M280000 28 46 22 61 10 50 6,36
CHP302M350000 35 51 24 82 10 40 7,65
CHP302M420000 42 59 27 116 10 20 11,86
CHP302M540000 54 73 36 178 10 10 14,43
CHP302M CHP302M760000 76,1 95 40 376 1 5 28,91
CHP302M890000
35,63
TAPPO CHP302MX80000 88,9 115 52 504 1 1 5 3 49,77
108
130
760
53
G - d
Codice L Z Peso in gr. Pz. sacchetto Pz. cartone
(ISO 228)
CHF359M051500 G¾-15 35 12 74 1 200 7,21
CHF359M051800 G¾-18 37 9 72 1 150 7,44
CHF359M062200 G1-22 39 7 96 1 100 7,94
CHF359M072800 G1¼-28 44 10 168 1 50 10,83
CHF359M083500 G1½-35 48 11 252 1 40 14,44
CHF359MB84200 G1¾-42 53 9 286 1 20 20,48
CHF359MC95400 G2" 3/8-54 61 10 428 1 10 28,96
CHF359M
GIRELLA CON DADO IN OTTONE
E GUARNIZIONE PIATTA IN EPDM

172
