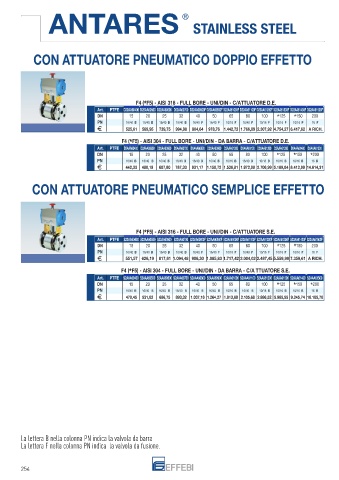

P. 254
ANTARES ® STAINLESS STEEL
CON ATTUATORE PNEUMATICO DOPPIO EFFETTO
*
F4 ( F5) - AISI 316 - FULL BORE - UNI/DIN - C/ATTUATORE D.E.
Art. PTFE D22AA60400 D22AA60500 D22AA60600 D22AA60700 D22AA60800F D22AA60900F D22AA61000F D22AA61100F D22AA61200F D22AA61300F D22AA61400F D22AA61500F
DN 15 20 25 32 40 50 65 80 100 * 125 * 150 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 F 16/40 F 10/16 F 16/40 F 10/16 F 10/16 F 10/16 F 16 F
525,61 569,95 739,75 994,98 804,64 978,76 1.442,72 1.766,09 2.307,92 4.754,27 6.417,62 A RICH.
*
F4 ( F5) - AISI 304 - FULL BORE - UNI/DIN - DA BARRA - C/ATTUATORE D.E.
Art. PTFE D2AAA60400 D2AAA60500 D2AAA60600 D2AAA60700 D2AAA60800 D2AAA60900 D2AAA61000 D2AAA61100 D2AAA61200 D2AAA61300 D2AAA61400 D2AAA61500
DN 15 20 25 32 40 50 65 80 100 * 125 * 150 * 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 16/40 B 10/16 B 10/16 B 10/16 B 16 B
442,33 480,19 607,80 787,33 931,17 1.150,72 1.536,81 1.872,08 2.706,99 5.189,04 8.412,99 14.614,31
CON ATTUATORE PNEUMATICO SEMPLICE EFFETTO
*
F4 ( F5) - AISI 316 - FULL BORE - UNI/DIN - C/ATTUATORE S.E.
Art. PTFE S22AA60400 S22AA60500 S22AA60600 S22AA60700 S22AA60800F S22AA60900F S22AA61000F S22AA61100F S22AA61200F S22AA61300F S22AA61400F S22AA61500F
DN 15 20 25 32 40 50 65 80 100 * 125 * 150 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 F 16/40 F 10/16 F 16/40 F 10/16 F 10/16 F 10/16 F 16 F
551,57 626,19 817,61 1.094,48 906,30 1.085,83 1.717,42 2.004,02 2.487,45 5.559,99 7.359,61 A RICH.
*
F4 ( F5) - AISI 304 - FULL BORE - UNI/DIN - DA BARRA - C/A TTUATORE S.E.
Art. PTFE S2AAA60400 S2AAA60500 S2AAA60600 S2AAA60700 S2AAA60800 S2AAA60900 S2AAA61000 S2AAA61100 S2AAA61200 S2AAA61300 S2AAA61400 S2AAA61500
DN 15 20 25 32 40 50 65 80 100 * 125 * 150 * 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 16/40 B 10/16 B 10/16 B 10/16 B 16 B
470,45 531,02 686,75 893,32 1.037,16 1.264,27 1.813,68 2.105,68 2.886,52 5.965,55 9.245,74 16.105,70
La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione.
