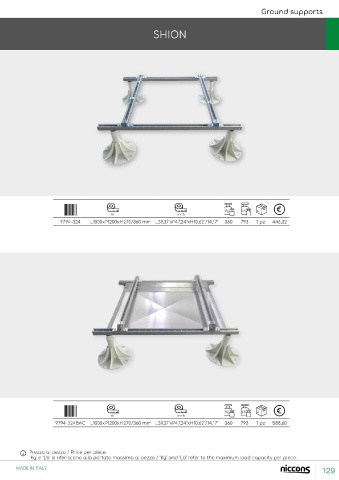

Supporti a pavimento Ground supports
SHION SHION
P
L
H
107 cm / 42,1" max
47 cmand adjustable structure for the support of
Struttura modulare componibile e regolabile per il Modular 13 cm 47 cm
condensing unit for roof and ground systems.
sostegno di moto condensanti per grandi impianti a 6,5 cm 18,5" 5,1" 18,5" 6,5 cm Kg Lb
min
tetto e a terra. 2,5" Niccons supports the customer in the project analysis m inch
2,5"
Niccons supporta il cliente nell’analisi del progetto in in order to offer the best installation solutions. 9794-324 L1000xP1200xH270/360 mm L39,37"xP47,24"xH10,62"/14,17” 360 793 1 pz 446,32
modo da poter offrire le migliori soluzioni d’installazione. Economic and quick to install.
34,2 cm 26,2 cm
Soluzione economica e rapida da installare. Reduces vibrations transmitted by the machines.
13,4"
10,3"
120 cm
max
min
Riduce le vibrazioni trasmesse dalle macchine. Composed by: 47,2" galvanized profiles, support feet and
Composto da: profili zincati, piedi di supporto e viteria certified fixing screws
di fissaggio certificata.
107 cm / 42,1" max
47 cm 13 cm 47 cm
18,5" 5,1" 18,5"
6,5 cm min 6,5 cm
2,5" 2,5"
34,2 cm 26,2 cm
13,4" 10,3" 120 cm
max min 47,2"
I supporti sono dotati di: The supports are equipped with:
• uno snodo, che gli permette di adattarsi a diverse • a joint, which allows it to adapt to differents inclinations; m inch Kg Lb
inclinazioni; • NBR rubber base pad;
• tappeto in gomma NBR; • seal positioned in the upper part; 9794-324BAC L1000xP1200xH270/360 mm L39,37"xP47,24"xH10,62"/14,17” 360 793 1 pz 588,60
• guarnizione posizionata nella parte superiore; • a screw and a nut Ø10mm (0,39”).
• una vite e un dado Ø10mm.
Prezzo al pezzo / Price per piece.
‘Kg’ e ‘Lb’ si riferiscono alla portata massima al pezzo / ‘Kg’ and ‘Lb’ refer to the maximum load capacity per piece.
