Page 171 - NICCONS - LISTINO 2022
P. 171
Staffe e accessori Wall brackets and accessories

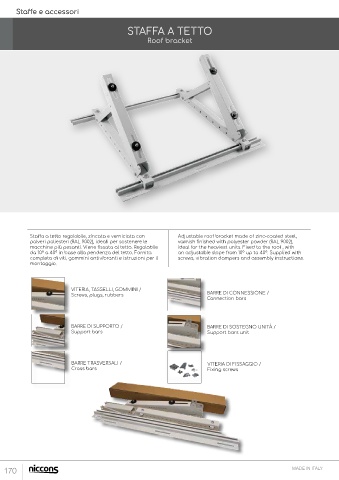

STAFFA A TETTO STAFFA A TETTO
Roof bracket Roof bracket
m inch
420mm / 17” 9794-004 P448xL850 mm P17,63"xL33,46" 15/10 100 set 109,33
80 120 135 70 15
3.15” 4.7” 5.3” 2.7” 0.6”
450mm / 18” 448mm / 17,63”
Kg Lb
80 120 165 70 15 17 115 250 50 16
15° 80 176,37
3.15” 4.7” 6.4” 2.7” 0.6” 0.67” 4.52” 9.84” 1.96 0.62”
20° 100 220,46
480mm / 19”
80 120 195 70 15 25° 120 264,55
3.15” 4.7” 7.6” 2.7” 0.6” 30° 150 330,69
540mm / 21”
80 120 245 70 15
3.15” 4.7” 9.6” 2.7” 0.6”
560mm / 22”
80 120 275 70 15
3.15” 4.7” 10.8” 2.7” 0.6”
Staffa a tetto regolabile, zincata e verniciata con Adjustable roof bracket made of zinc-coated steel,
polveri poliesteri (RAL 9002), ideali per sostenere le varnish finished with polyester powder (RAL 9002),
macchine più pesanti. Viene fissata al tetto. Regolabile ideal for the heaviest units. Fixed to the roof , with
da 10° a 40° in base alla pendenza del tetto. Fornita an adjustable slope from 10° up to 40°. Supplied with
completa di viti, gommini antivibranti e istruzioni per il screws, vibration dampers and assembly instructions.
montaggio.
VITERIA, TASSELLI, GOMMINI /
Screws, plugs, rubbers BARRE DI CONNESSIONE /
Connection bars
BARRE DI SUPPORTO / BARRE DI SOSTEGNO UNITÀ /
Support bars Support bars unit
BARRE TRASVERSALI / VITERIA DI FISSAGGIO /
Cross bars Fixing screws
Prezzo al pezzo / Price per piece.
170 MADE IN ITALY MADE IN ITALY 171
