Page 261 - NICCONS - LISTINO 2022
P. 261
Attrezzature vuoto e/o carico Vacuum and charge equipments

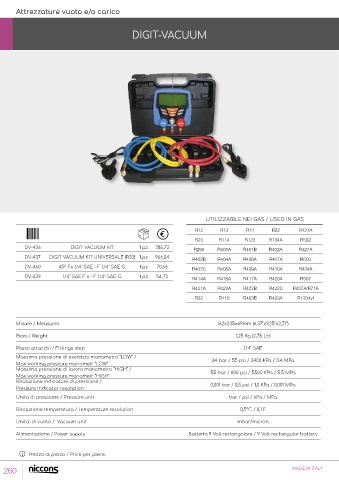

DIGIT-VACUUM GRUPPI MANOMETRICI
Pressure gauges
4 VIE / 4 way
GM-430
GAS
GM-433
GM-430 TR422B (R22) - R407C - R134A 1 pz 103,07
GM-434
GM-433 R410A-R32 1 pz 108,78
GM-434 TR422B (R22) - R407C - R410A 1 pz 108,98
Gruppo manometrico tipo 4 vie con Manifold type 4-way with flow-ma-
indicatore di flusso-manometri Ø 70mm nometer indicator Ø 70mm (2,75")
a molla bourdon-a secco-attacchi da 1/4 spring bourdon-dry-attacks 1/4" SAE
SAE •Version for gas TR422B (R22)-R407C-
•Versione per gas TR422B (R22)-R407C R134A
R134A •Version for gas TR422B (R22)-R407C-
•Versione per gas TR422B (R22)-R407C- R410A
R410A •Version for gas R410A-R32
•Versione per gas R410A-R32
4 VIE BAGNO D’OLIO / 4 way oil bath
GM-438
GAS
UTILIZZABILE NEI GAS / USED IN GAS
R12 R13 R14 R22 R424A GM-438 TR422B(R22) - R407C - R410A - R32 1 pz 141,06
R23 R114 R123 R134A R502
DV-436 DIGIT VACUUM KIT 1 pz 786,72 R290 R401A R401B R402A R427A Gruppo manometrico tipo 4 vie con indi- Manometric unit type 4-way with
catore di flusso-studiato per un utilizzo flow-indicator designed for universal
DV-437 DIGIT VACUUM KIT UNIVERSALE (R32) 1 pz 966,04 R402B R404A R406A R407A R503 universale nei gas TR422B (R22)-R407C use in the gases TR422B (R22)-R407C
DV-460 45° Fx 1/4" SAE - F 1/4" SAE G. 1 pz 70,66 R407C R408A R409A R410A R434A e R410A-R32 manometri Ø70mm a molla and R410A-R32 manometers Ø70mm
bourdon- a secco o in bagno d’olio per (2,75") spring-bourdon- dry or oil
DV-439 1/4" SAE F x - F 1/4" SAE G. 1 pz 54,72 R414A R416A R417A R420A R507 una migliore precisione e durata nel bath for better accuracy and du-
R421A R422A R422B R422D R437A/R718 tempo-gancio di ancoraggio-attacchi rability in the time-hook anchor-at-
da 1/4 SAE. tacks from 1/4 SAE.
R32 R115 R403B R423A R1234yf
Misure / Measures 162x235x69mm (6,37”x9,25”x2,71”)
KIT COMPLETO / Complete kit
Peso / Weight 1,25 Kg (2,75 Lb) KCM-533
Passo attacchi / Fittings step 1/4" SAE GAS
Massima pressione di esercizio manometro “LOW” /
34 bar / 55 psi / 3400 KPa / 3.4 MPa KMC-530 Kit per gas R410 A - R32 1 pz 285,44
Max working pressure manometr “LOW”
Massima pressione di lavoro manometro “HIGH” /
55 bar / 800 psi / 5500 KPa / 5.5 MPa KMC-531 Kit per gas TR422B (R22) - R407A - R410A 1 pz 283,05
Max working pressure manometr “HIGH”
Risoluzione indicatore di pressione / KMC-533 Kit per gas TR422B (R22) - R407A - R134A 1 pz 281,46
0,001 bar / 0,5 psi / 1,0 KPa / 0,001 MPa
Pressure indicator resolution
Unità di pressione / Pressure unit bar / psi / kPa / MPa Composto da: Composed of:
•Gruppo manometrico a secco tipo 4 vie •Dry gauge unit type 4-way for gas
Risoluzione temperatura / Temperature resolution 0,5°C / 0,1 F per gas in 3 tipologie; in 3 types;
•1 serie di tubi per alta e bassa pressione •1 set of high and low pressure hoses
Unita` di vuoto / Vacuum unit mbar/micron L1500 mm completi di rubinetto; L1500 mm (4,92 ft) complete with
•1 tubo per vuoto per allacciamento faucet;
Alimentazione / Power supply Batteria 9 Volt rettangolare / 9 Volt rectangular battery pompa al gruppo manometrico, •1 vacuum hose for pump con-
completo di rubinetto. nection to manometer unit,
complete with faucet.
Prezzo al pezzo / Price per piece. Prezzo al pezzo / Price per piece.
260 MADE IN ITALY MADE IN ITALY 261
