Air diffusion grilles Air diffusion grilles
Griglie per la diffusione dell'aria
Air diffusion grilles

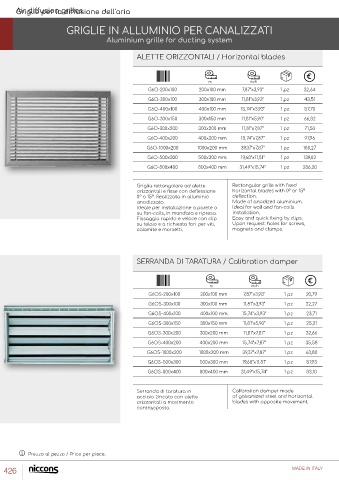

GRIGLIE IN ALLUMINIO PER CANALIZZATI GRIGLIE IN ALLUMINIO PER CANALIZZATI
Aluminium grille for ducting system Aluminium grilles for ducting system

ALETTE ORIZZONTALI / Horizontal blades DOPPIO FILO / Double row

m inch m inch
G6O-200x100 200x100 mm 7,87”x3,93” 1 pz 32,64 G6OV-200x100 200x100 mm 7,87”x3,93” 1 pz 35,34
G6O-300x100 300x100 mm 11,81”x3,93” 1 pz 43,51 G6OV-300x100 300x100 mm 11,81”x3,93” 1 pz 39,56
G6O-400x100 400x100 mm 15,74”x3,93” 1 pz 57,70 G6OV-400x100 400x100 mm 15,74”x3,93” 1 pz 52,28

G6O-300x150 300x150 mm 11,81”x5,90” 1 pz 66,82 G6OV-300x150 300x150 mm 11,81”x5,90” 1 pz 48,03
G6O-300x200 300x200 mm 11,81”x7,87” 1 pz 71,50 G6OV-500x150 500x150 mm 19,68”x5,90” 1 pz 77,70
G6O-400x200 400x200 mm 15,74”x7,87” 1 pz 97,96 G6OV-300x200 300x200 mm 11,81”x7,87” 1 pz 67,53
G6O-1000x200 1000x200 mm 39,37”x7,87” 1 pz 180,27 G6OV-400x200 400x200 mm 15,74”x7,87” 1 pz 76,27
G6O-500x300 500x300 mm 19,68”x11,81” 1 pz 139,82
G6O-800x400 800x400 mm 31,49”x15,74” 1 pz 286,20

Griglia rettangolare ad alette Rectangular grille with fixed Bocchetta a doppio filare di alette Grille with double row of blades
orizzontali e fisse con deflessione horizontal blades with 0° or 15° (alette frontali parallele al lato (frontal horizontal, back vertical).
0° o 15°. Realizzata in alluminio deflection. lungo, posteriori parallele al lato
anodizzato. Made of anodized aluminium. corto).
Ideale per installazione a parete o Ideal for wall and fan-coils
su fan-coils, in mandata e ripresa. installation.
Fissaggio rapido e veloce con clip Easy and quick fixing by clips.
su telaio e a richiesta fori per viti, Upon request: holes for screws,
calamite e morsetti. magnets and clamps.

SERRANDA DI TARATURA / Calibration damper SERRANDA DI TARATURA / Calibration damper

m inch m inch
G6OS-200x100 200x100 mm 7,87”x3,93” 1 pz 20,79 G6OVS-200x100 200x100 mm 7,87”x3,93” 1 pz 20,77
G6OS-300x100 300x100 mm 11,81”x3,93” 1 pz 22,27 G6OVS-300x100 300x100 mm 11,81”x3,93” 1 pz 22,27
G6OS-400x100 400x100 mm 15,74”x3,93” 1 pz 23,71 G6OVS-400x100 400x100 mm 15,74”x3,93” 1 pz 23,71
G6OS-300x150 300x150 mm 11,81”x5,90” 1 pz 25,21 G6OVS-300x150 300x150 mm 11,81”x5,90” 1 pz 25,22
G6OS-300x200 300x200 mm 11,81”x7,87” 1 pz 32,66 G6OVS-500x150 500x150 mm 19,68”x5,90” 1 pz 34,10

G6OS-400x200 400x200 mm 15,74”x7,87” 1 pz 35,58 G6OVS-300x200 300x200 mm 11,81”x7,87” 1 pz 32,66
G6OS-1000x200 1000x200 mm 39,37”x7,87” 1 pz 63,80 G6OVS-400x200 400x200 mm 15,74”x7,87” 1 pz 35,58
G6OS-500x300 500x300 mm 19,68”x11,81” 1 pz 51,93
G6OS-800x400 800x400 mm 31,49”x15,74” 1 pz 83,10

Serranda di taratura in Calibration damper made Serranda di taratura in Calibration damper made
acciaio zincato con alette of galvanized steel and horizontal acciaio zincato con alette verticali of galvanized steel and vertical
orizzontali a movimento blades with opposite movement. a movimento contrapposto. blades with opposite movement.
contrapposto.

Prezzo al pezzo / Price per piece. Prezzo al pezzo / Price per piece.

426 MADE IN ITALY MADE IN ITALY 427
