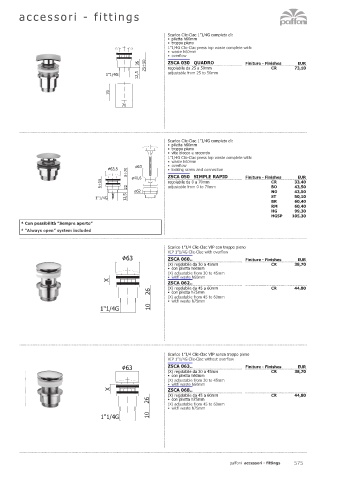

Page 577 - PAFFONI - LISTINO 20

accessori - fi ttings

Scarico Clic-Clac 1”1/4G completo di:
• piletta h60mm
• troppo pieno
1”1/4G Clic-Clac press top waste complete with:
• waste h60mm
• overflow
25÷50 regolabile da 25 a 50mm CR 73,10
35 ZSCA 030 QUADRO Finiture - Finishes EUR
1"1/4G 12,5 adjustable from 25 to 50mm

70
70

Scarico Clic-Clac 1”1/4G completo di:
• piletta h60mm
• troppo pieno
• vite blocco e raccordo
1”1/4G Clic-Clac press top waste complete with:
• waste h60mm
ø63 • overflow
∅63,5 • locking screw and connection
0÷70 ø40,6 ZSCA 050 SIMPLE RAPID Finiture - Finishes EUR
5÷15 regolabile da 0 a 70mm CR 33,40
BO
adjustable from 0 to 70mm
43,50
22
ø62 NO 43,50
1"1/4G 12,5 ST 50,10
60,40
BR
RM 60,40
HG 99,30
HGSP 105,30
* Con possibilità ”Sempre aperto”
* “Always open” system included
Scarico 1”1/4 Clic-Clac VIP con troppo pieno
VIP 1”1/4G Clic-Clac with overflow
∅63 ZSCA 060.. Finiture - Finishes EUR
(X) regolabile da 30 a 45mm CR 38,70
• con piletta h60mm
(X) adjustable from 30 to 45mm
• with waste h60mm
X ZSCA 062..
(X) regolabile da 45 a 60mm CR 44,80
26 • con piletta h75mm
(X) adjustable from 45 to 60mm
• with waste h75mm
1"1/4G 10

Scarico 1”1/4 Clic-Clac VIP senza troppo pieno
VIP 1”1/4G Clic-Clac without overflow
∅63 ZSCA 063.. Finiture - Finishes EUR
(X) regolabile da 30 a 45mm CR 38,70
• con piletta h60mm
(X) adjustable from 30 to 45mm
• with waste h60mm
X ZSCA 068..
(X) regolabile da 45 a 60mm CR 44,80
26 • con piletta h75mm
(X) adjustable from 45 to 60mm
• with waste h75mm
1"1/4G 10

paffoni accessori - fittings 575
