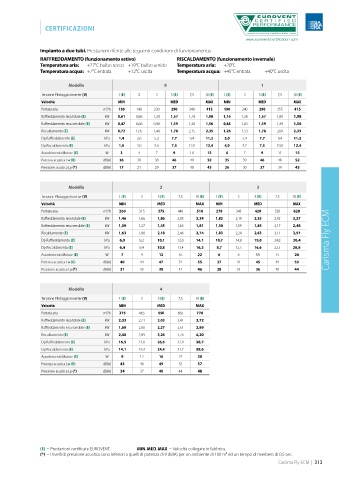

Page 317 - SABIANA - CATALOGO 2024
P. 317
| CERTIFICAZIONI
Impianto a due tubi. Prestazioni riferite alle seguenti condizioni di funzionamento:
RAFFREDDAMENTO (funzionamento estivo) RISCALDAMENTO (funzionamento invernale)
Temperatura aria: +27°C bulbo secco +19°C bulbo umido Temperatura aria: +20°C
Temperatura acqua: +7°C entrata +12°C uscita Temperatura acqua: +45°C entrata +40°C uscita
Modello 0 1
Tensione Pilotaggio Inverter (V) 1 (E) 2 3 5 (E) 7,5 10 (E) 1 (E) 3 5 (E) 7,5 10 (E)
Velocità MIN MED MAX MIN MED MAX
Portata aria m3/h 130 148 230 290 340 415 190 240 290 355 415
Raffreddamento resa totale (E) kW 0,61 0,86 1,28 1,57 1,78 1,98 1,16 1,38 1,57 1,80 1,98
Raffreddamento resa sensibile (E) kW 0,47 0,66 0,90 1,19 1,38 1,56 0,85 1,03 1,19 1,39 1,56
Riscaldamento (E) kW 0,72 1,05 1,48 1,78 2,15 2,35 1,26 1,53 1,78 2,09 2,35
Dp Raffreddamento (E) kPa 1,4 2,6 5,2 7,7 9,4 11,2 5,0 5,9 7,7 9,4 11,2
Dp Riscaldamento (E) kPa 1,6 3,0 5,6 7,5 12,0 12,4 4,0 5,7 7,5 10,0 12,4
Assorbimento Motore (E) W 3 4 7 9 10 15 6 7 9 11 15
Potenza acustica Lw (E) dB(A) 26 30 38 46 49 52 35 39 46 48 52
Pressione acustica Lp (*) dB(A) 17 21 29 37 40 43 26 30 37 39 43
Modello 2 3
Tensione Pilotaggio Inverter (V) 1 (E) 3 5 (E) 7,5 10 (E) 1 (E) 3 5 (E) 7,5 10 (E)
Velocità MIN MED MAX MIN MED MAX
Portata aria m3/h 260 315 375 440 510 270 345 420 520 620
Raffreddamento resa totale (E) kW 1,46 1,66 1,86 2,05 2,24 1,82 2,19 2,52 2,92 3,27
Raffreddamento resa sensibile (E) kW 1,09 1,27 1,45 1,63 1,81 1,30 1,59 1,85 2,17 2,48
Riscaldamento (E) kW 1,63 1,90 2,18 2,46 2,74 1,83 2,24 2,63 3,11 3,57
Dp Raffreddamento (E) kPa 6,9 8,2 10,1 12,0 14,1 10,7 14,8 19,0 24,8 30,4 Carisma Fly ECM
Dp Riscaldamento (E) kPa 6,4 8,4 10,8 13,4 16,3 8,7 12,5 16,6 22,5 28,8
Assorbimento Motore (E) W 7 9 12 16 22 6 8 11 15 20
Potenza acustica Lw (E) dB(A) 40 44 47 51 55 37 42 45 49 53
Pressione acustica Lp (*) dB(A) 31 35 38 42 46 28 33 36 40 44
Modello 4
Tensione Pilotaggio Inverter (V) 1 (E) 3 5 (E) 7,5 10 (E)
Velocità MIN MED MAX
Portata aria m3/h 375 465 550 665 770
Raffreddamento resa totale (E) kW 2,33 2,71 3,03 3,41 3,72
Raffreddamento resa sensibile (E) kW 1,69 2,00 2,27 2,61 2,89
Riscaldamento (E) kW 2,40 2,85 3,26 3,76 4,20
Dp Raffreddamento (E) kPa 16,5 21,6 26,6 32,9 38,7
Dp Riscaldamento (E) kPa 14,1 19,3 24,4 31,7 38,6
Assorbimento Motore (E) W 9 12 16 22 30
Potenza acustica Lw (E) dB(A) 43 46 49 53 57
Pressione acustica Lp (*) dB(A) 34 37 40 44 48
(E) = Prestazioni certificate EUROVENT. MIN-MED-MAX = Velocità collegate in fabbrica.
(*) = I livelli di pressione acustica sono inferiori a quelli di potenza di 9 dB(A) per un ambiente di 100 m3 ed un tempo di riverbero di 0,5 sec.
Carisma Fly-ECM | 313
