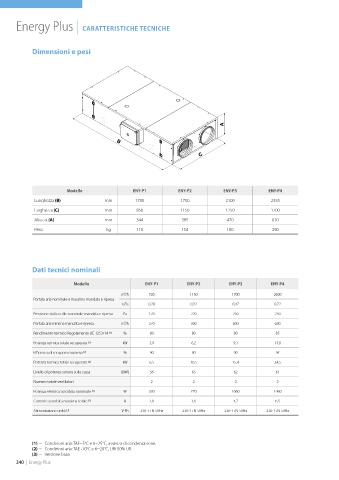

Energy Plus | CARATTERISTICHE TECNICHE
Dimensioni e pesi
A
B
C
Modello ENY-P1 ENY-P2 ENY-P3 ENY-P4
Lunghezza (B) mm 1700 1750 2100 2355
Larghezza (C) mm 850 1150 1250 1700
Altezza (A) mm 344 385 470 610
Peso kg 110 154 180 290
Dati tecnici nominali
Modello ENY-P1 ENY-P2 ENY-P3 ENY-P4
m3/h 720 1150 1700 2600
Portata aria nominale e massima mandata e ripresa
m3/s 0,20 0,32 0,47 0,72
Pressione statica utile nominale mandata e ripresa Pa 170 220 250 250
Portata aria minima mandata e ripresa m3/h 270 300 600 690
Rendimento termico Regolamento UE 1253/14 (1) % 80 80 80 85
Potenza termica totale recuperata (1) kW 3,9 6,2 9,1 14,8
Efficienza di recupero massima (2) % 90 90 90 94
Potenza termica totale recuperata (2) kW 6,5 10,5 15,4 24,5
Livello di potenza sonora sulla cassa (LWA) 56 63 62 61
Numero totale ventilatori 2 2 2 2
Potenza elettrica assorbita nominale (3) W 330 770 1060 1460
Corrente assorbita massima totale (3) A 2,8 3,6 4,7 6,5
Alimentazione unità (3) V-Ph 230-1+N 50Hz 230-1+N 50Hz 230-1+N 50Hz 230-1+N 50Hz
(1) = Condizioni aria: TAE=5°C e ti=25°C, assenza di condensazione.
(2) = Condizioni aria: TAE -10°C e ti=20°C, URi 50% UR.
(3) = Versione base.
