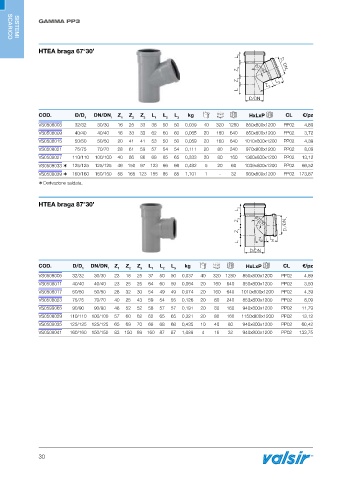

P. 32
GAMMA PP3
SISTEMI
SISTEMI
SCARICO
SCARICO
HTEA braga 67°30’
L 3
Z 3 67°30’ D 1 /DN 1
Z 1 L 2
Z 2
L 1
D/DN
COD. D/D DN/DN Z Z Z L L L kg HxLxP CL €/pz
1 1 1 2 3 1 2 3
VS0508003 32/32 30/30 16 25 33 38 50 50 0,039 40 320 1280 850x800x1200 PP02 4,89
VS0508009 40/40 40/40 16 33 33 62 60 60 0,065 20 160 640 850x800x1200 PP02 3,72
VS0508015 50/50 50/50 20 41 41 53 50 50 0,059 20 160 640 1010x800x1200 PP02 4,39
VS0508021 75/75 70/70 28 61 59 57 54 54 0,111 20 80 240 970x800x1200 PP02 8,09
VS0508027 110/110 100/100 40 86 86 68 65 65 0,333 20 80 160 1300x800x1200 PP02 13,12
VS0508033 Ü 125/125 125/125 46 150 97 123 66 66 0,482 5 20 60 1039x800x1200 PP02 66,52
VS0508039 Ü 160/160 150/150 58 165 123 155 85 85 1,101 1 - 32 930x800x1200 PP02 173,87
Ü Derivazione saldata.
HTEA braga 87°30’
L 3
Z 3 87°30’ D 1 /DN 1
Z 1
Z L 2
L 1 2
D/DN
COD. D/D DN/DN Z Z Z L L L kg HxLxP CL €/pz
1 1 1 2 3 1 2 3
VS0508005 32/32 30/30 23 18 25 37 50 50 0,037 40 320 1280 850x800x1200 PP02 4,89
VS0508011 40/40 40/40 23 25 25 64 60 59 0,064 20 160 640 850x800x1200 PP02 3,50
VS0508017 50/50 50/50 28 32 30 54 49 49 0,074 20 160 640 1010x800x1200 PP02 4,39
VS0508023 75/75 70/70 40 25 43 59 54 55 0,126 20 80 240 853x800x1200 PP02 8,09
VS0599065 90/90 90/90 48 52 52 58 57 57 0,191 20 80 160 940x800x1200 PP02 11,79
VS0508029 110/110 100/100 57 60 62 62 65 65 0,321 20 80 160 1150x800x1200 PP02 13,12
VS0508035 125/125 125/125 65 69 70 68 68 68 0,435 10 40 80 940x800x1200 PP02 60,42
VS0508041 160/160 150/150 83 150 89 160 87 87 1,089 4 16 32 940x800x1200 PP02 133,75
30
