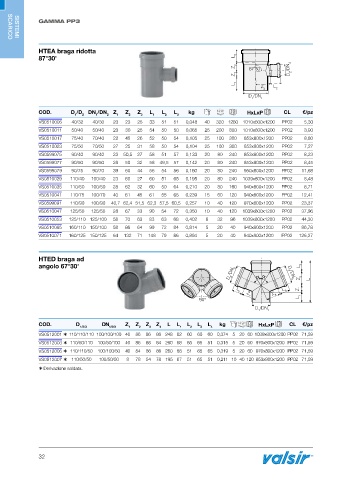

GAMMA PP3
SISTEMI
SISTEMI
SCARICO
SCARICO
HTEA braga ridotta
87°30’ L 3
Z 3 87˚30' D 2 /DN 2
Z 1
L 1
Z 2 L 2
D /DN 1
1
COD. D /D DN /DN Z Z Z L L L kg HxLxP CL €/pz
1 2 1 2 1 2 3 1 2 3
VS0510005 40/32 40/30 23 23 25 33 51 51 0,048 40 320 1280 1010x800x1200 PP02 5,30
VS0510011 50/40 50/40 23 30 25 54 50 50 0,065 25 200 800 1010x800x1200 PP02 3,90
VS0510017 75/40 70/40 22 45 26 52 50 54 0,105 25 100 300 853x800x1200 PP02 8,80
VS0510023 75/50 70/50 27 25 31 58 50 54 0,104 25 100 300 853x800x1200 PP02 7,27
VS0599075 90/40 90/40 23 50,5 27 58 51 57 0,133 20 80 240 853x800x1200 PP02 8,23
VS0599077 90/50 90/50 28 50 32 58 49,5 57 0,142 20 80 240 853x800x1200 PP02 8,45
VS0599079 90/75 90/70 39 60 44 56 54 56 0,160 20 80 240 950x800x1200 PP02 11,68
VS0510029 110/40 100/40 23 60 27 60 51 65 0,195 20 80 240 1039x800x1200 PP02 8,48
VS0510035 110/50 100/50 28 62 32 60 50 64 0,210 20 80 160 940x800x1200 PP02 8,71
VS0510041 110/75 100/70 40 61 45 61 55 65 0,239 15 60 120 940x800x1200 PP02 12,41
VS0599091 110/90 100/90 40,7 62,4 51,5 62,3 57,5 60,5 0,257 10 40 120 970x800x1200 PP02 23,37
VS0510047 125/50 125/50 28 67 33 90 54 72 0,350 10 40 120 1039x800x1200 PP02 37,96
VS0510053 125/110 125/100 58 70 63 83 63 68 0,402 8 32 96 1039x800x1200 PP02 44,30
VS0510065 160/110 150/100 58 86 64 99 72 84 0,814 5 20 40 940x800x1200 PP02 86,78
VS0510071 160/125 150/125 64 132 71 148 79 86 0,894 5 20 40 940x800x1200 PP02 126,27
HTED braga ad
angolo 67°30’ L 3
D 2 /DN 2 D 3 /DN 3 Z 3 L
L L Z 1
2 4
Z Z 4
2
90° L 1
D /DN
1 1
COD. D DN Z Z Z Z L L L L L kg HxLxP CL €/pz
1/2/3 1/2/3 1 2 3 4 1 2 3 4
VS0512001 Ü 110/110/110 100/100/100 40 86 86 86 248 62 60 60 60 0,374 5 20 60 1039x800x1200 PP02 71,59
VS0512003 Ü 110/50/110 100/50/100 40 86 86 84 260 68 65 65 51 0,315 5 20 60 970x800x1200 PP02 71,59
VS0512005 Ü 110/110/50 100/100/50 40 84 86 86 260 68 51 65 65 0,319 5 20 60 970x800x1200 PP02 71,59
VS0512007 Ü 110/50/50 100/50/50 8 78 54 78 195 67 51 65 51 0,211 10 40 120 853x800x1200 PP02 71,59
Ü Derivazione saldata.
