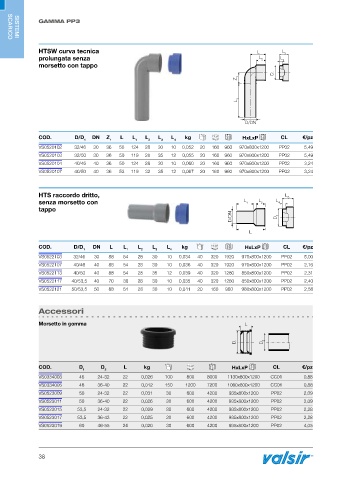

GAMMA PP3

SISTEMI
SISTEMI
SCARICO
SCARICO
HTSW curva tecnica L L 3
prolungata senza L 2 L 4
morsetto con tappo
D 1
Z 1

L 1

D/DN

COD. D/D DN Z L L L L L kg HxLxP CL €/pz
1 1 1 2 3 4
VS0520102 32/46 30 36 50 124 28 30 10 0,052 20 160 960 970x800x1200 PP02 5,49
VS0520103 32/50 30 36 50 119 28 35 12 0,055 20 160 960 970x800x1200 PP02 5,49
VS0520104 40/46 40 36 50 124 28 30 10 0,060 20 160 960 970x800x1200 PP02 3,24
VS0520107 40/50 40 36 53 119 32 35 12 0,067 20 160 960 970x800x1200 PP02 3,24

HTS raccordo dritto, L 3
senza morsetto con L 1 L 2 L 4
tappo
D/DN D 1

L

COD. D/D DN L L L L L kg HxLxP CL €/pz
1 1 2 3 4
VS0522103 32/46 30 88 54 28 30 10 0,034 40 320 1920 970x800x1200 PP02 5,00
VS0522107 40/46 40 88 54 28 30 10 0,036 40 320 1920 970x800x1200 PP02 2,16
VS0522113 40/50 40 88 54 28 35 12 0,039 40 320 1280 850x800x1200 PP02 2,31
VS0522117 40/53,5 40 70 38 28 30 10 0,035 40 320 1280 850x800x1200 PP02 2,40
VS0522121 50/53,5 50 88 54 28 30 10 0,041 20 160 960 980x800x1200 PP02 2,58

Accessori

Morsetto in gomma L

D 1 D 2

COD. D D L kg HxLxP CL €/pz
1 2
VS0334003 46 24-32 22 0,026 100 800 8000 1130x800x1200 CC01 0,88
VS0334005 46 36-40 22 0,012 150 1200 7200 1060x800x1200 CC01 0,88
VS0523009 50 24-32 22 0,031 30 600 4200 935x800x1200 PP02 2,09
VS0523011 50 36-40 22 0,026 30 600 4200 935x800x1200 PP02 2,09
VS0523015 53,5 24-32 22 0,029 30 600 4200 935x800x1200 PP02 2,28
VS0523017 53,5 36-43 22 0,025 30 600 4200 935x800x1200 PP02 2,28
VS0523019 60 46-55 24 0,020 30 600 4200 935x800x1200 PP02 4,05

38
