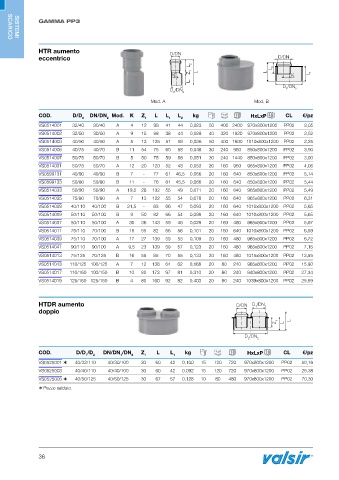

P. 38
GAMMA PP3
SISTEMI
SISTEMI
SCARICO
SCARICO
HTR aumento D/DN
eccentrico D/DN
L 2
L 2
Z 1 L L
K K L 1
L 1
D /DN
D /DN 2 2
2 2
Mod. A Mod. B
COD. D/D DN/DN Mod. K Z L L L kg HxLxP CL €/pz
2 2 1 1 2
VS0514001 32/40 30/40 A 4 12 98 41 44 0,023 50 400 2400 970x800x1200 PP02 3,05
VS0514002 32/50 30/50 A 9 15 98 38 44 0,028 40 320 1920 970x800x1200 PP02 3,52
VS0514003 40/50 40/50 A 5 13 125 51 58 0,036 50 400 1600 1010x800x1200 PP02 2,25
VS0514005 40/75 40/70 B 11 54 75 60 58 0,048 30 240 960 850x800x1200 PP02 3,90
VS0514007 50/75 50/70 B 5 50 75 59 58 0,051 30 240 1440 850x800x1200 PP02 3,90
VS0514031 50/75 50/70 A 12 20 120 52 48 0,053 20 160 960 965x800x1200 PP02 4,06
VS0599131 40/90 40/90 B 7 - 77 61 46,5 0,066 20 160 640 850x800x1200 PP02 5,14
VS0599133 50/90 50/90 B 11 - 76 61 45,5 0,066 20 160 640 850x800x1200 PP02 5,44
VS0514033 50/90 50/90 A 19,5 28 132 55 49 0,071 20 160 640 965x800x1200 PP02 5,49
VS0514035 75/90 70/90 A 7 13 122 55 54 0,076 20 160 640 965x800x1200 PP02 6,31
VS0514008 40/110 40/100 B 21,5 - 83 66 47 0,093 20 160 640 1010x800x1200 PP02 5,65
VS0514009 50/110 50/100 B 9 50 82 66 54 0,096 20 160 640 1010x800x1200 PP02 5,65
VS0514037 50/110 50/100 A 30 36 143 59 48 0,029 20 160 480 965x800x1200 PP02 5,97
VS0514011 75/110 70/100 B 16 55 82 66 56 0,101 20 160 640 1010x800x1200 PP02 6,59
VS0514039 75/110 70/100 A 17 27 139 59 53 0,109 20 160 480 965x800x1200 PP02 6,72
VS0514041 90/110 90/100 A 9,5 23 139 59 57 0,123 20 160 480 965x800x1200 PP02 7,15
VS0514013 75/125 70/125 B 16 55 85 70 55 0,133 20 160 480 1015x800x1200 PP02 13,55
VS0514043 110/125 100/125 A 7 12 138 64 62 0,168 20 80 240 965x800x1200 PP02 15,90
VS0514017 110/160 100/150 B 10 80 173 97 81 0,310 20 80 240 940x800x1200 PP02 27,34
VS0514019 125/160 125/150 B 4 80 160 92 82 0,403 20 80 240 1039x800x1200 PP02 29,59
HTDR aumento D/DN D /DN 1
1
doppio
Z 1 L 1 L
D /DN
2 2
COD. D/D /D DN/DN /DN Z L L kg HxLxP CL €/pz
1 2 1 2 1 1
VS0525001 Ü 40/32/110 40/30/100 30 60 42 0,100 15 120 720 970x800x1200 PP02 50,16
VS0525003 40/40/110 40/40/100 30 60 42 0,092 15 120 720 970x800x1200 PP02 26,38
VS0525005 Ü 40/50/125 40/50/125 30 67 57 0,128 10 80 480 970x800x1200 PP02 70,30
Ü Pezzo saldato.
36
