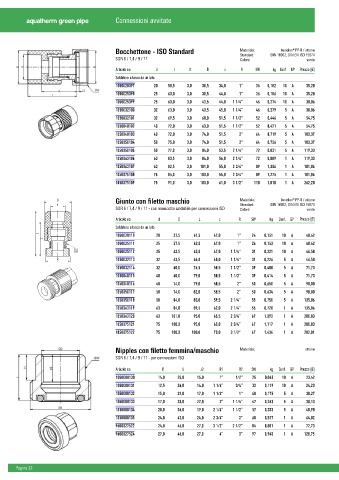

P. 34

aquatherm green pipe            Connessioni avvitate




                                          Bocchettone - ISO Standard                 Materiale:     fusiolen® PP-R / ottone
                                          SDR 6 / 7,4 / 9 / 11                       Standard:   DIN 16962, DIN EN ISO 15874
                                                                                                             verde
                                                                                     Colore:
                                          Articolo no.  d     l    l1     D     z     R    SW    kg Conf. GP  Prezzo [€]
                                          Saldatura a tasca da un lato
                                          1050020097   20   58,5   3,0  38,5  34,0   1“    36  0,182  10  A  35,20
                                          1050025098   25   60,0   3,0  38,5  44,0   1“    36  0,186  10  A  35,20
                                          1050025099   25   60,0   3,0  43,5  44,0  1 1/4“  46  0,274  10  A  38,06
                                          1050032100   32   63,0   3,0  43,5  45,0  1 1/4“  46  0,279  5  A  38,06
                                          1050032101   32   69,5   3,0  60,0  51,5  1 1/2“  52  0,446  5  A  54,75
                                          1050040102   40   72,0   3,0  60,0  51,5  1 1/2“  52  0,421  5  A  54,75
                                          1050040103   40   72,0   3,0  74,0  51,5   2“    64  0,719  5  A  103,37
                                          1050050104   50   75,0   3,0  74,0  51,5   2“    64  0,736  5  A  103,37
                                          1050050105   50   77,0   3,0  84,0  53,5  2 1/4“  72  0,831  5  A  119,33
                                          1050063106   63   83,5   3,0  84,0  56,0  2 1/4“  72  0,889  1  A  119,33
                                          1050063107   63   82,5   3,0  101,0  55,0  2 3/4“  89  1,306  1  A  181,86
                                          1050075108   75   85,0   3,0  100,0  55,0  2 3/4“  89  1,275  1  A  181,86
                                          1050075109   75   91,0   3,0  100,0  61,0  3 1/2“  110  1,818  1  A  262,20

                     D                    Giunto con filetto maschio                 Materiale:     fusiolen® PP-R / ottone
                     d                                                               Standard:   DIN 16962, DIN EN ISO 15874
                                          SDR 6 / 7,4 / 9 / 11 - con manicotto saldabile per connessioni ISO  Colore:  verde

                                          Articolo no.   d      D      L      z      R   SW     kg  Conf. GP  Prezzo [€]
                                          Saldatura a tasca da un lato
                                          1050020110    20    37,5   61,5   47,0    1“   24   0,151  10  A   40,62
              L
               z
                                          1050025111    25    37,5   63,0   47,0    1“   24   0,153  10  A   40,62
                                          1050025112    25    43,5   63,0   47,0  1 1/4“  31  0,221  10  A   46,58
                           SW
                     R                    1050032113    32    43,5   66,0   48,0  1 1/4“  31  0,226  5  A    46,58
                                          1050032114    32    60,0   76,5   58,5  1 1/2“  39  0,408  5  A    71,73
                                          1050040115    40    60,0   79,0   58,5  1 1/2“  39  0,414  5  A    71,73
                                          1050040116    40    74,0   79,0   58,5    2“   50   0,650  5  A    98,00
                                          1050050117    50    74,0   82,0   58,5    2“   50   0,634  5  A    98,00
                                          1050050118    50    84,0   83,0   59,5  2 1/4“  55  0,750  5  A   135,06
                                          1050063119    63    84,0   89,5   62,0  2 1/4“  55  0,728  1  A   135,06
                                          1050063120    63   101,0   95,0   65,5  2 3/4“  67  1,093  1  A   200,83
                                          1050075121    75   100,0   95,0   65,0  2 3/4“  67  1,117  1  A   200,83
                                          1050075122    75   100,0  100,0   70,0  3 1/2“  67  1,436  1  A   282,01


                                          Nipples con filetto femmina/maschio        Materiale:             ottone
                                          SDR 6 / 7,4 / 9 / 11 - per connessioni ISO
                                          Articolo no.    l1     L     z2     R1     R2  SW     kg  Conf.  GP  Prezzo [€]
                                          1050000130     14,0  25,0   15,0    1“    1/2“  25  0,063  10  A   23,42
                                          1050000131     12,5  26,0   14,0  1 1/4“  3/4“  32  0,119  10  A   24,23
                                          1050000132     15,0  31,0   17,0  1 1/2“   1“   40  0,175  5  A    30,27
                                          1050000133     17,0  33,0   22,0    2“   1 1/4“  47  0,263  5  A   38,13
                                          1050000134     20,0  36,0   19,0  2 1/4“  1 1/2“  57  0,333  5  A  48,90
                                          1050000135     24,0  42,0   24,0  2 3/4“   2“   68  0,517  1  A    64,02
                                          9600027522     24,0  46,0   27,0  3 1/2“  2 1/2“  84  0,801  1  A  72,73
                                          9600027524     27,0  46,0   27,0    4“     3“   97  0,943  1  A   128,75
