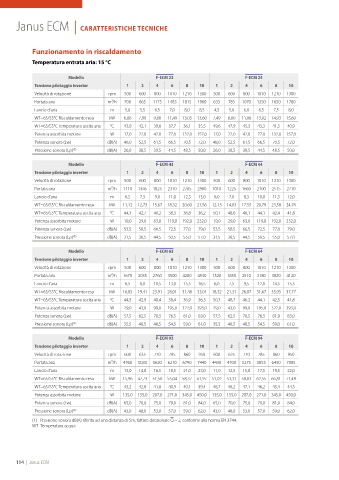

Page 118 - SABIANA - CATALOGO 2024 - FIDRA

Janus ECM | CARATTERISTICHE TECNICHE

Funzionamento in riscaldamento

Temperatura entrata aria: 15 °C

Modello F-ECM 23 F-ECM 24
Tensione pilotaggio inverter 1 2 4 6 8 10 1 2 4 6 8 10
Velocità di rotazione rpm 500 600 800 1010 1210 1300 500 600 800 1010 1210 1300
Portata aria m³/h 700 865 1175 1485 1815 1960 635 785 1070 1350 1650 1780
Lancio d’aria m 5,0 5,5 6,5 7,0 8,0 8,5 4,5 5,0 6,0 6,5 7,5 8,0
WT=65/55°C Riscaldamento resa kW 6,88 7,99 9,88 11,49 13,05 13,60 7,49 8,80 11,06 13,02 14,93 15,60
WT=65/55°C Temperatura uscita aria °C 43,9 42,1 39,6 37,7 36,1 35,5 49,6 47,9 45,3 43,3 41,5 40,9
Potenza assorbita motore W 17,0 22,0 42,0 77,0 132,0 157,0 17,0 22,0 42,0 77,0 132,0 157,0
Potenza sonora (Lw) dB(A) 48,0 52,5 61,5 66,5 70,5 72,0 48,0 52,5 61,5 66,5 70,5 72,0
Pressione sonora (Lp) (1) dB(A) 26,0 30,5 39,5 44,5 48,5 50,0 26,0 30,5 39,5 44,5 48,5 50,0

Modello F-ECM 43 F-ECM 44
Tensione pilotaggio inverter 1 2 4 6 8 10 1 2 4 6 8 10
Velocità di rotazione rpm 500 600 800 1010 1210 1300 500 600 800 1010 1210 1300
Portata aria m³/h 1110 1345 1825 2310 2765 2980 1010 1225 1660 2100 2515 2710
Lancio d’aria m 6,5 7,5 9,0 11,0 12,5 13,0 6,0 7,0 8,5 10,0 11,5 12,0
WT=65/55°C Riscaldamento resa kW 11,12 12,73 15,67 18,32 20,60 21,56 12,13 14,03 17,55 20,79 23,58 24,76
WT=65/55°C Temperatura uscita aria °C 44,3 42,7 40,2 38,3 36,8 36,2 50,1 48,6 46,1 44,1 42,4 41,8
Potenza assorbita motore W 19,0 29,0 63,0 119,0 192,0 232,0 19,0 29,0 63,0 119,0 192,0 232,0
Potenza sonora (Lw) dB(A) 53,5 58,5 66,5 72,5 77,0 79,0 53,5 58,5 66,5 72,5 77,0 79,0
Pressione sonora (Lp) (1) dB(A) 31,5 36,5 44,5 50,5 55,0 57,0 31,5 36,5 44,5 50,5 55,0 57,0

Modello F-ECM 63 F-ECM 64
Tensione pilotaggio inverter 1 2 4 6 8 10 1 2 4 6 8 10
Velocità di rotazione rpm 500 600 800 1010 1210 1300 500 600 800 1010 1210 1300
Portata aria m³/h 1670 2035 2760 3500 4200 4530 1520 1850 2510 3180 3820 4120
Lancio d’aria m 6,5 8,0 10,5 13,0 15,5 16,5 6,0 7,5 9,5 12,0 14,5 15,5
WT=65/55°C Riscaldamento resa kW 16,85 19,41 23,91 28,01 31,48 33,01 18,32 21,31 26,07 31,67 35,95 37,77
WT=65/55°C Temperatura uscita aria °C 44,5 42,9 40,4 38,4 36,9 36,3 50,3 48,7 46,2 44,1 42,5 41,8
Potenza assorbita motore W 29,0 43,0 99,0 195,0 322,0 393,0 29,0 43,0 99,0 195,0 322,0 393,0
Potenza sonora (Lw) dB(A) 57,5 62,5 70,5 76,5 81,0 83,0 57,5 62,5 70,5 76,5 81,0 83,0
Pressione sonora (Lp) (1) dB(A) 35,5 40,5 48,5 54,5 59,0 61,0 35,5 40,5 48,5 54,5 59,0 61,0

Modello F-ECM 93 F-ECM 94
Tensione pilotaggio inverter 1 2 4 6 8 10 1 2 4 6 8 10
Velocità di rotazione rpm 600 635 710 785 860 950 600 635 710 785 860 950
Portata aria m³/h 4760 5030 5620 6210 6790 7440 4430 4700 5275 5855 6430 7085
Lancio d’aria m 13,0 14,0 16,5 18,5 21,0 23,0 11,0 12,5 15,0 17,5 19,5 22,0
WT=65/55°C Riscaldamento resa kW 15,96 47,73 51,50 55,04 58,37 61,97 51,02 53,31 58,03 62,55 66,81 71,49
WT=65/55°C Temperatura uscita aria °C 43,2 42,8 41,8 40,9 40,1 39,4 48,7 48,2 47,1 46,2 45,4 44,5
Potenza assorbita motore W 135,0 155,0 207,0 271,0 345,0 450,0 135,0 155,0 207,0 271,0 345,0 450,0
Potenza sonora (Lw) dB(A) 65,0 70,0 75,0 79,0 81,0 84,0 65,0 70,0 75,0 79,0 81,0 84,0
Pressione sonora (Lp) (1) dB(A) 43,0 48,0 53,0 57,0 59,0 62,0 43,0 48,0 53,0 57,0 59,0 62,0
(1) Pressione sonora dB(A) riferita ad una distanza di 5m, fattore direzionale Q = 2, conforme alla norma EN 3744.
WT Temperatura acqua
