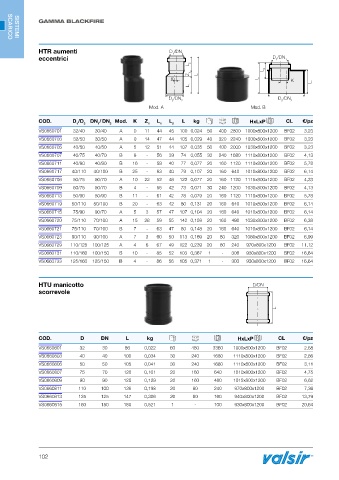

Page 104 - VALSIR - LISTINO ITS 2024 - FIDRA

GAMMA BLACKFIRE

SISTEMI
SISTEMI
SCARICO
SCARICO
HTR aumenti D /DN 1
1
eccentrici D /DN 1
1
L 2
L 2
Z 1 L
K L K
L 1 L 1
D /DN D /DN
2 2 2 2
Mod. A Mod. B
COD. D /D DN / DN Mod. K Z L L L kg HxLxP CL €/pz
1 2 1 2 1 1 2
VS0660701 32/40 30/40 A 0 11 44 45 100 0,024 50 400 2800 1000x800x1200 BF02 3,23
VS0660703 32/50 30/50 A 0 14 47 44 105 0,029 40 320 2240 1000x800x1200 BF02 3,23
VS0660705 40/50 40/50 A 5 12 51 44 107 0,035 50 400 2000 1030x800x1200 BF02 3,23
VS0660707 40/75 40/70 B 9 - 56 39 74 0,055 30 240 1680 1110x800x1200 BF02 4,13
VS0660711 40/90 40/90 B 16 - 59 40 77 0,077 20 160 1120 1110x800x1200 BF02 5,78
VS0660717 40/110 40/100 B 25 - 63 40 79 0,107 20 160 640 1010x800x1200 BF02 6,14
VS0660708 50/75 50/70 A 10 22 52 48 122 0,077 20 160 1120 1115x800x1200 BF02 4,33
VS0660709 50/75 50/70 B 4 - 56 42 73 0,071 30 240 1200 1030x800x1200 BF02 4,13
VS0660713 50/90 50/90 B 11 - 61 42 78 0,079 20 160 1120 1110x800x1200 BF02 5,78
VS0660719 50/110 50/100 B 20 - 63 42 80 0,131 20 160 640 1010x800x1200 BF02 6,14
VS0660715 75/90 90/70 A 5 3 57 47 107 0,104 20 160 640 1010x800x1200 BF02 6,14
VS0660720 75/110 70/100 A 15 28 59 55 142 0,159 20 160 480 1030x800x1200 BF02 6,38
VS0660721 75/110 70/100 B 7 - 63 47 80 0,148 20 160 640 1010x800x1200 BF02 6,14
VS0660723 90/110 90/100 A 7 3 60 50 113 0,169 20 80 320 1080x800x1200 BF02 6,99
VS0660729 110/125 100/125 A 4 6 67 49 122 0,239 20 80 240 970x800x1200 BF02 11,12
VS0660731 110/160 100/150 B 10 - 85 52 103 0,367 1 - 306 930x800x1200 BF02 16,64
VS0660733 125/160 125/150 B 4 - 86 56 105 0,371 1 - 300 930x800x1200 BF02 16,64

HTU manicotto D/DN
scorrevole

L

COD. D DN L kg HxLxP CL €/pz
VS0660801 32 30 86 0,022 60 480 3360 1000x800x1200 BF02 2,68
VS0660803 40 40 100 0,034 30 240 1680 1110x800x1200 BF02 2,86
VS0660805 50 50 105 0,041 30 240 1680 1110x800x1200 BF02 3,11
VS0660807 75 70 120 0,101 20 160 640 1010x800x1200 BF02 4,75
VS0660809 90 90 120 0,129 20 160 480 1015x800x1200 BF02 6,62
VS0660811 110 100 136 0,198 20 80 240 970x800x1200 BF02 7,36
VS0660813 125 125 147 0,306 20 80 160 940x800x1200 BF02 13,79
VS0660815 160 150 180 0,521 1 - 100 930x800x1200 BF02 20,64
