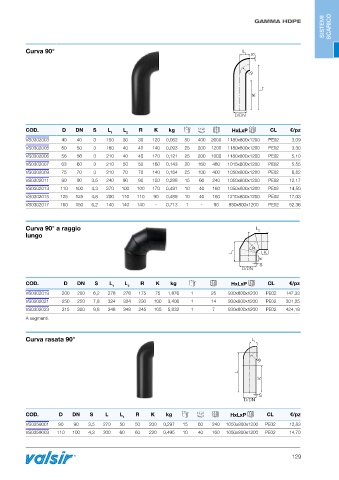

Page 131 - VALSIR - LISTINO ITS 2024 - FIDRA

SISTEMI SISTEMI SCARICO SCARICO
GAMMA HDPE

Curva 90° L
2
S

R

L 1
K

D/DN

COD. D DN S L L R K kg HxLxP CL €/pz
1 2
VS0302003 40 40 3 150 30 30 120 0,062 50 400 2000 1180x800x1200 PE02 3,09
VS0302005 50 50 3 180 40 40 140 0,093 25 200 1200 1180x800x1200 PE02 3,30
VS0302006 56 56 3 210 40 40 170 0,121 25 200 1000 1180x800x1200 PE02 5,10
VS0302007 63 60 3 210 50 50 160 0,143 20 160 480 1015x800x1200 PE02 5,55
VS0302009 75 70 3 210 70 70 140 0,164 25 100 400 1050x800x1200 PE02 8,82
VS0302011 90 90 3,5 240 90 90 150 0,288 15 60 240 1050x800x1200 PE02 12,17
VS0302013 110 100 4,3 270 100 100 170 0,491 10 40 160 1050x800x1200 PE02 14,50
VS0302015 125 125 4,8 200 110 110 90 0,489 10 40 160 1210x800x1200 PE02 17,03
VS0302017 160 150 6,2 140 140 140 - 0,713 1 - 90 930x800x1200 PE02 52,36

Curva 90° a raggio L 2
lungo

R
L 1 K
K
S
D/DN

COD. D DN S L L R K kg HxLxP CL €/pz
1 2
VS0302019 200 200 6,2 278 278 175 75 1,876 1 25 930x800x1200 PE02 147,33
VS0302021 250 250 7,8 324 324 230 100 3,408 1 14 930x800x1200 PE02 301,25
VS0302023 315 300 9,8 348 348 245 105 5,832 1 7 930x800x1200 PE02 424,19
A segmenti.

Curva rasata 90° L 1

R
L
K

S
D/DN

COD. D DN S L L R K kg HxLxP CL €/pz
1
VS0359001 90 90 3,5 270 50 50 200 0,297 15 60 240 1050x800x1200 PE02 12,83
VS0359003 110 100 4,3 300 60 60 220 0,495 10 40 160 1050x800x1200 PE02 14,70

129
