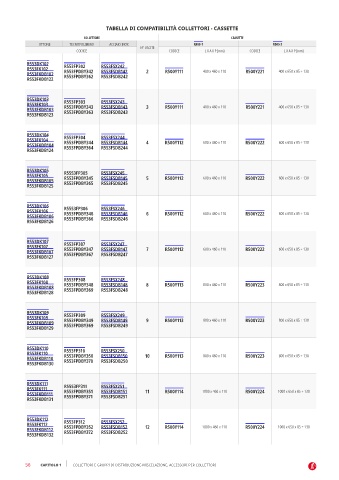

Page 58 - GIACOMINI - LISTINO 2024

TABELLA DI COMPATIBILITÀ COLLETTORI - CASSETTE
COLLETTORI CASSETTE
OTTONE TECNOPOLIMERO ACCIAIO INOX R500-1 R500-2
N° USCITE
CODICE CODICE L X A X P [mm] CODICE L X A X P [mm]
R553DK102 R553FP302 R553FSX242
R553FK102 R553FPDBY342 R553FSDB142 2 R500Y111 R500Y221
R553FKDB102 R553FPDBY362 R553FSDB242 400 x 460 x 110 400 x 650 x 85 ÷ 130
R553FKDB122

R553DK103
R553FK103 R553FP303 R553FSX243
R553FKDB103 R553FPDBY343 R553FSDB143 3 R500Y111 400 x 460 x 110 R500Y221 400 x 650 x 85 ÷ 130
R553FKDB123 R553FPDBY363 R553FSDB243

R553DK104 R553FP304 R553FSX244
R553FK104 R553FPDBY344 R553FSDB144 4 R500Y112 R500Y222
R553FKDB104 R553FPDBY364 R553FSDB244 600 x 460 x 110 600 x 650 x 85 ÷ 130
R553FKDB124

R553DK105 R5553FP305 R553FSX245
R553FK105 R553FPDBY345 R553FSDB145 5 R500Y112 R500Y222
R553FKDB105 R553FPDBY365 R553FSDB245 600 x 460 x 110 600 x 650 x 85 ÷ 130
R553FKDB125

R553DK106
R553FK106 R5553FP306 R553FSX246
R553FKDB106 R553FPDBY346 R553FSDB146 6 R500Y112 600 x 460 x 110 R500Y222 600 x 650 x 85 ÷ 130
R553FKDB126 R553FPDBY366 R553FSDB246

R553DK107 R553FP307 R553FSX247
R553FK107 R553FPDBY347 R553FSDB147 7 R500Y112 R500Y222
R553FKDB107 R553FPDBY367 R553FSDB247 600 x 460 x 110 600 x 650 x 85 ÷ 130
R553FKDB127

R553DK108
R553FK108 R553FP308 R553FSX248
R553FKDB108 R553FPDBY348 R553FSDB148 8 R500Y113 800 x 460 x 110 R500Y223 800 x 650 x 85 ÷ 130
R553FKDB128 R553FPDBY369 R553FSDB248

R553DK109
R553FK109 R553FP309 R553FSX249
R553FKDB109 R553FPDBY349 R553FSDB149 9 R500Y113 800 x 460 x 110 R500Y223 800 x 650 x 85 ÷ 130
R553FKDB129 R553FPDBY369 R553FSDB249

R553DK110 R553FP310 R553FSX250
R553FK110 R553FPDBY350 R553FSDB150 10 R500Y113 R500Y223
R553FKDB110 R553FPDBY370 R553FSDB250 800 x 460 x 110 800 x 650 x 85 ÷ 130
R553FKDB130

R553DK111
R553FK111 R5553FP311 R553FSX251
R553FKDB111 R553FPDBY351 R553FSDB151 11 R500Y114 1000 x 460 x 110 R500Y224 1000 x 650 x 85 ÷ 130
R553FKDB131 R553FPDBY371 R553FSDB251

R553DK112 R553FP312 R553FSX252
R553FK112 R553FPDBY352 R553FSDB152 12 R500Y114 R500Y224
R553FKDB112 R553FPDBY372 R553FSDB252 1000 x 460 x 110 1000 x 650 x 85 ÷ 130
R553FKDB132
