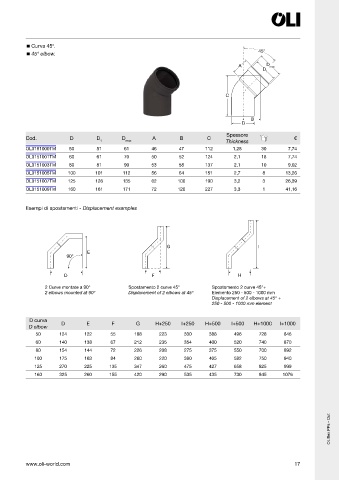

Page 17 - OLI - LISTINO OLIFLEX PPS

Curva 45°.
45°
45° elbow.
A D max
D
1

C

B
D
Spessore
Cod. D D D A B C €
1 max Thickness
OL0151000TM 50 51 61 46 47 112 1,25 30 7,74
OL0151001TM 60 61 70 50 52 124 2,1 18 7,74
OL0151003TM 80 81 90 53 58 137 2,1 10 9,02
OL0151005TM 100 101 112 56 64 151 2,7 8 13,26
OL0151007TM 125 126 135 62 100 190 3,2 3 26,39
OL0151009TM 160 161 171 72 120 227 3,3 1 41,16

Esempi di spostamenti - Displacement examples

G I
E
90°

D F H
2 Curve montate a 90° Spostamento 2 curve 45° Spostamento 2 curve 45°+
2 elbows mounted at 90° Displacement of 2 elbows at 45° Elemento 250 - 500 - 1000 mm
Displacement of 2 elbows at 45° +
250 - 500 - 1000 mm element

D curva
D elbow D E F G H+250 I+250 H+500 I+500 H+1000 I+1000
50 124 122 55 188 223 330 388 496 728 846
60 140 138 67 212 235 354 400 520 740 870
80 154 144 72 226 208 275 375 550 700 892
100 175 163 84 260 220 380 405 582 750 940
125 270 225 135 347 260 475 427 658 825 999
160 325 260 155 420 290 535 435 730 845 1076

OLIflex PPs - Out
