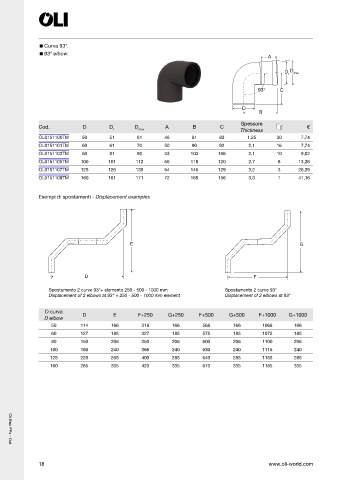

Page 18 - OLI - LISTINO OLIFLEX PPS

Curva 93°.
93° elbow.
A

D D
1 max

93° C

D
B
Spessore
Cod. D D D A B C €
1 max Thickness
OL0151100TM 50 51 61 46 81 83 1,25 30 7,74
OL0151101TM 60 61 70 50 90 92 2,1 16 7,74
OL0151103TM 80 81 90 53 103 106 2,1 10 9,02
OL0151105TM 100 101 112 56 118 120 2,7 8 13,26
OL0151107TM 125 126 135 64 146 129 3,2 3 26,39
OL0151109TM 160 161 171 72 168 156 3,3 1 41,16

Esempi di spostamenti - Displacement examples

E G

D F

Spostamento 2 curve 93°+ elemento 250 - 500 - 1000 mm Spostamento 2 curve 93°
Displacement of 2 elbows at 93° + 250 - 500 - 1000 mm element Displacement of 2 elbows at 93°

D curva
D elbow D E F+250 G+250 F+500 G+500 F+1000 G+1000
50 114 166 318 166 568 166 1068 166
60 127 185 327 185 575 185 1075 185
80 150 208 350 208 600 208 1100 208
100 180 240 366 240 630 240 1115 240
125 220 265 400 285 640 285 1155 285
160 265 335 423 335 673 335 1185 335

OLIflex PPs - Out

18 www.oli-world.com
