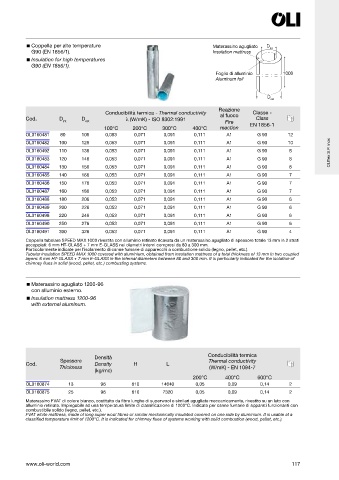

Coppella per alte temperature Materassino agugliato D int
G90 (EN 1856/1). Insulation mattress
Insulation for high temperatures
G90 (EN 1856/1).
Foglio di alluminio 1000
Aluminum foil
D est
Reazione
Conducibilità termica - Thermal conductivity al fuoco Classe -
Cod. D D λ (W/mK) - ISO 8302:1991 Class
int est Fire EN 1856-1
100°C 200°C 300°C 400°C reaction
OL0160481 80 106 0,053 0,071 0,091 0,111 A1 G 90 12
OL0160482 100 126 0,053 0,071 0,091 0,111 A1 G 90 10
OL0160492 110 136 0,053 0,071 0,091 0,111 A1 G 90 8 OLI ex S.P. inox
OL0160483 120 146 0,053 0,071 0,091 0,111 A1 G 90 8
OL0160484 130 156 0,053 0,071 0,091 0,111 A1 G 90 8
OL0160485 140 166 0,053 0,071 0,091 0,111 A1 G 90 7
OL0160486 150 176 0,053 0,071 0,091 0,111 A1 G 90 7
OL0160487 160 186 0,053 0,071 0,091 0,111 A1 G 90 7
OL0160488 180 206 0,053 0,071 0,091 0,111 A1 G 90 6
OL0160489 200 226 0,053 0,071 0,091 0,111 A1 G 90 6
OL0160498 220 246 0,053 0,071 0,091 0,111 A1 G 90 6
OL0160490 250 276 0,053 0,071 0,091 0,111 A1 G 90 6
OL0160491 300 326 0,053 0,071 0,091 0,111 A1 G 90 4
Coppella tubolare SPEED MAX 1000 rivestita con alluminio retinato ricavata da un materassino agugliato di spessore totale 13 mm in 2 strati
accoppiati: 6 mm HT-GLASS + 7 mm E-GLASS nei diametri interni compresi da 80 a 300 mm.
Particolarmente indicate per l’isolamento di canne fumarie di apparecchi a combustione solido (legno, pellet, etc.).
Tubular insulation SPEED MAX 1000 covered with aluminium, obtained from insulation mattress of a total thickness of 13 mm in two coupled
layers: 6 mm HT-GLASS + 7 mm E-GLASS in the internal diameters between 80 and 300 mm. It is particularly indicated for the isolation of
chimney flues in solid (wood, pellet, etc.) combusting systems.
Materassino agugliato 1200-96
con alluminio esterno.
Insulation mattress 1200-96
with external aluminum.
Densità Conducibilità termica
Spessore Thermal conductivity
Cod. Density H L
Thickness (W/mK) - EN 1094-7
(kg/mc)
200°C 400°C 600°C
OL0160874 13 96 610 14640 0,05 0,09 0,14 2
OL0160875 25 96 610 7320 0,05 0,09 0,14 2
Materassino FVAT di colore bianco, costituito da bre lunghe di superwool o similari agugliate meccanicamente, rivestito su un lato con
alluminio retinato. Impiegabile ad una temperatura limite di classi cazione di 1200°C. Indicato per canne fumarie di apparati funzionanti con
combustibile solido (legno, pellet, etc.).
FVAT white mattress, made of long super wool fibres or similar mechanically insulated covered on one side by aluminium. It is usable at a
classified temperature limit of 1200°C. It is indicated for chimney flues of systems working with solid combustion (wood, pellet, etc.).
