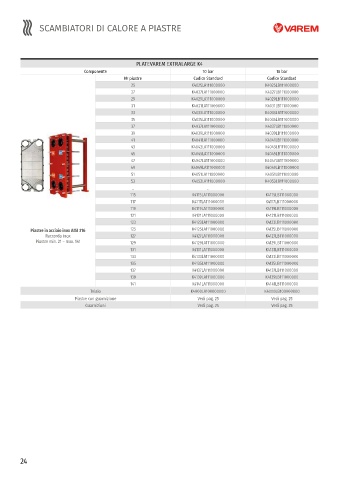

Page 24 - VAREM - CATALOGO 2024

SCAMBIATORI DI CALORE A PIASTRE

PLATEVAREM EXTRALARGE K4
Componente 10 bar 16 bar
Nr piastre Codice Standard Codice Standard
25 K4025LA111000000 K4025LB111000000
27 K4027LA111000000 K4027LB111000000
29 K4029LA111000000 K4029LB111000000
31 K4031LA111000000 K4031LB111000000
33 K4033LA111000000 K4033LB111000000
35 K4035LA111000000 K4035LB111000000
37 K4037LA111000000 K4037LB111000000
39 K4039LA111000000 K4039LB111000000
41 K4041LA111000000 K4041LB111000000
43 K4043LA111000000 K4043LB111000000
45 K4045LA111000000 K4045LB111000000
47 K4047LA111000000 K4047LB111000000
49 K4049LA111000000 K4049LB111000000
51 K4051LA111000000 K4051LB111000000
53 K4053LA111000000 K4053LB111000000
.. .. ..
115 K4115LA111000000 K4115LB111000000
117 K4117LA111000000 K4117LB111000000
119 K4119LA111000000 K4119LB111000000
121 K4121LA111000000 K4121LB111000000
123 K4123LA111000000 K4123LB111000000
Piastre in acciaio inox AISI 316 125 K4125LA111000000 K4125LB111000000
Raccordo inox 127 K4127LA111000000 K4127LB111000000
Piastre min. 21 – max. 141 129 K4129LA111000000 K4129LB111000000
131 K4131LA111000000 K4131LB111000000
133 K4133LA111000000 K4133LB111000000
135 K4135LA111000000 K4135LB111000000
137 K4137LA111000000 K4137LB111000000
139 K4139LA111000000 K4139LB111000000
141 K4141LA111000000 K4141LB111000000
Telaio K4000LA100000000 K4000LB100000000
Piastre con guarnizione Vedi pag. 25 Vedi pag. 25
Guarnizioni Vedi pag. 25 Vedi pag. 25
