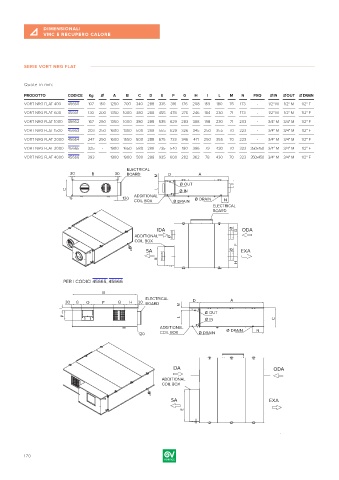

K M DIMENSIONALI
FAMIGLIA
VMC E RECUPERO CALORE

SERIE VORT NRG FLAT

Quote in mm:
PRODOTTO CODICE Kg Ø A B C D E F G H I L M N PXQ ØIN ØOUT Ø DRAIN
VORT NRG FLAT 400 45660 107 150 1250 700 340 288 335 316 176 208 159 180 76 173 - 1/2" M 1/2" M 1/2" F
VORT NRG FLAT 600 45661 130 200 1350 1000 380 288 455 478 276 246 184 230 71 173 - 1/2" M 1/2" M 1/2" F
VORT NRG FLAT 1000 45662 167 250 1350 1000 380 288 535 629 283 388 198 230 71 203 - 3/4" M 3/4" M 1/2" F
VORT NRG FLAT 1500 45663 203 250 1600 1300 500 288 555 629 326 345 250 355 70 223 - 3/4" M 3/4" M 1/2" F
VORT NRG FLAT 2000 45664 247 250 1600 1550 500 288 675 733 346 471 250 355 70 223 - 3/4" M 3/4" M 1/2" F
VORT NRG FLAT 3000 45665 325 - 1900 1650 580 288 735 540 190 396 79 430 70 323 350x450 3/4" M 3/4" M 1/2" F
VORT NRG FLAT 4000 45666 393 - 1900 1900 580 288 935 600 282 362 78 430 70 323 350x450 3/4" M 3/4" M 1/2" F

ELECTRICAL
30 B 30 BOARD M D A

OUT I
C L
IN
ADDITIONAL
120
DRAIN
COIL BOX
DRAIN N
ELECTRICAL
BOARD

IDA
G ODA
ADDITIONAL
COIL BOX
F
SA
EXA
E
H

PER I CODICI 45665, 45666

B
ELECTRICAL
30 G Q F Q H 30 BOARD M D A
I

OUT
P L

IN C
ADDITIONAL
DRAIN N
120 COIL BOX
DRAIN

IDA ODA

ADDITIONAL
COIL BOX

SA EXA

E

0
170
