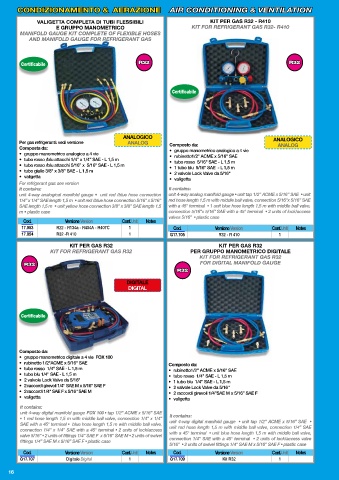

Page 18 - FERRARI - CONDIZIONAMENTO

CONDIZIONAMENTO & AERAZIONE AIR CONDITIONING & VENTILATION

VALIGETTA COMPLETA DI TUBI FLESSIBILI KIT PER GAS R32 - R410
E GRUPPO MANOMETRICO KIT FOR REFRIGERANT GAS R32- R410
MANIFOLD GAUGE KIT COMPLETE OF FLEXIBLE HOSES
MANIFOLD GAUGE KIT COMPLETE OF FLEXIBLE HOSES
AND MANIFOLD GAUGE FOR REFRIGERANT GAS
AND MANIFOLD GAUGE FOR REFRIGERANT GAS

Certifi cabile R32 R32

Certifi cabile

ANALOGICO ANALOGICO
Per gas refrigeranti: vedi versione ANALOG Composto da: ANALOG
Composta da: • gruppo manometrico analogico a 4 vie
• gruppo manometrico analogico a 4 vie • rubinetto1/2" ACME x 5/16" SAE
• tubo rosso /blu attacchi 1/4” x 1/4” SAE - L 1,5 m • tubo rosso 5/16" SAE - L 1,5 m
• tubo rosso /blu attacchi 5/16” x 5/16" SAE - L 1,5 m • 1 tubo blu 5/16" SAE - L 1,5 m
• tubo giallo 3/8" x 3/8” SAE - L 1,5 m • 2 valvole Lock Valve da 5/16"
• valigetta • valigetta
For refrigerant gas: see version
It contains: It contains:
unit 4-way analogical manifold gauge • unit red /blue hose connection unit 4-way analog manifold gauge • unit tap 1/2” ACME x 5/16” SAE • unit
1/4” x 1/4” SAE length 1,5 m • unit red /blue hose connection 5/16” x 5/16” red hose length 1,5 m with middle ball valve, connection 5/16”x 5/16” SAE
SAE length 1,5 m • unit yellow hose connection 3/8” x 3/8” SAE length 1,5 with a 45° terminal • 1 unit blue hose length 1,5 m with middle ball valve,
m • plastic case connection 5/16”x 5/16” SAE with a 45° terminal • 2 units of lock/access
valves 5/16” • plastic case
Cod. Versione Version Conf.Unit Notes
17.053 R22 - R134a - R404A - R407C 1 Cod. Versione Version Conf.Unit Notes
17.054 R32 -R 410 1 G17.705 R32 - R 410 1
KIT PER GAS R32 KIT PER GAS R32
KIT FOR REFRIGERANT GAS R32 PER GRUPPO MANOMETRICO DIGITALE
KIT FOR REFRIGERANT GAS R32
R32 FOR DIGITAL MANIFOLD GAUGE
R32
DIGITALE
DIGITAL

Certifi cabile

Composto da:
• gruppo manometrico digitale a 4 vie FOX 100
• rubinetto 1/2"ACME x 5/16" SAE Composto da:
• tubo rosso 1/4" SAE - L 1,5 m • rubinetto1/2" ACME x 5/16" SAE
• tubo blu 1/4" SAE - L 1,5 m • tubo rosso 1/4" SAE - L 1,5 m
• 2 valvole Lock Valve da 5/16" • 1 tubo blu 1/4” SAE - L 1,5 m
• 2 raccordi girevoli 1/4" SAE M x 5/16" SAE F • 2 valvole Lock Valve da 5/16"
• 2 raccordi 1/4" SAE F x 5/16" SAE M • 2 raccordi girevoli 1/4”SAE M x 5/16” SAE F
• valigetta • valigetta

It contains:
unit 4-way digital manifold gauge FOX 100 • tap 1/2” ACME x 5/16” SAE
• 1 red hose length 1,5 m with middle ball valve, connection 1/4” x 1/4” It contains:
SAE with a 45° terminal • blue hose length 1,5 m with middle ball valve, unit 4-way digital manifold gauge • unit tap 1/2” ACME x 5/16” SAE •
connection 1/4” x 1/4” SAE with a 45° terminal • 2 units of lock/access unit red hose length 1,5 m with middle ball valve, connection 1/4” SAE
valve 5/16” • 2 units of fi ttings 1/4” SAE F x 5/16” SAE M • 2 units of swivel with a 45° terminal • unit blue hose length 1,5 m with middle ball valve,
fi ttings 1/4” SAE M x 5/16” SAE F • plastic case connection 1/4” SAE with a 45° terminal • 2 units of lock/access valve
5/16” • 2 units of swivel fi ttings 1/4” SAE M x 5/16” SAE F • plastic case
Cod. Versione Version Conf.Unit Notes Cod. Versione Version Conf.Unit Notes
G17.707 Digitale Digital 1 G17.709 Kit R32 1

16
