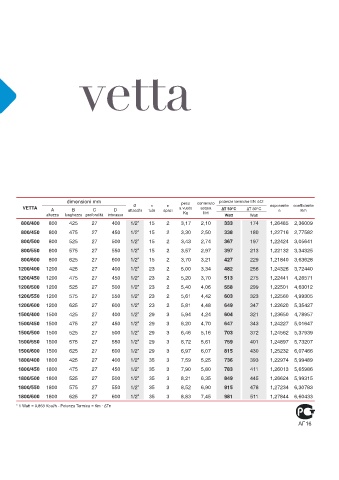

Page 108 - GLOBAL RADIATORI - CATALOGO GRIGIO

vetta

dimensioni mm peso contenuto potenze termiche EN 442
Ø n n esponente coeffi ciente
VETTA A B C D attacchi tubi spazi a vuoto acqua ∆T 50°C ∆T 30°C n Km
altezza lunghezza profondità interasse Kg litri Watt Watt
800/400 800 425 27 400 1/2” 15 2 3,17 2,10 333 174 1,26485 2,36009
800/450 800 475 27 450 1/2” 15 2 3,30 2,50 338 180 1,22716 2,77582
800/500 800 525 27 500 1/2” 15 2 3,43 2,74 367 197 1,22424 3,05641
800/550 800 575 27 550 1/2” 15 2 3,57 2,97 397 213 1,22132 3,34325
800/600 800 625 27 600 1/2” 15 2 3,70 3,21 427 229 1,21840 3,63628
1200/400 1200 425 27 400 1/2” 23 2 5,00 3,34 482 256 1,24326 3,72440
1200/450 1200 475 27 450 1/2” 23 2 5,20 3,70 513 275 1,22441 4,26571
1200/500 1200 525 27 500 1/2” 23 2 5,40 4,06 558 299 1,22501 4,63012
1200/550 1200 575 27 550 1/2” 23 2 5,61 4,42 603 323 1,22560 4,99305
1200/600 1200 625 27 600 1/2” 23 2 5,81 4,48 649 347 1.22620 5,35427
1500/400 1500 425 27 400 1/2” 29 3 5,94 4,24 604 321 1,23650 4,78957
1500/450 1500 475 27 450 1/2” 29 3 6,20 4,70 647 343 1,24227 5,01647
1500/500 1500 525 27 500 1/2” 29 3 6,46 5,16 703 372 1,24562 5,37939
1500/550 1500 575 27 550 1/2” 29 3 6,72 5,61 759 401 1,24897 5,73207
1500/600 1500 625 27 600 1/2” 29 3 6,97 6,07 815 430 1,25232 6,07466
1800/400 1800 425 27 400 1/2” 35 3 7,59 5,25 736 393 1,22974 5,99489
1800/450 1800 475 27 450 1/2” 35 3 7,90 5,80 783 411 1,26013 5,65986
1800/500 1800 525 27 500 1/2” 35 3 8,21 6,35 849 445 1,26624 5,99315
1800/550 1800 575 27 550 1/2” 35 3 8,52 6,90 915 478 1,27234 6,30783
1800/600 1800 625 27 600 1/2” 35 3 8,83 7,45 981 511 1,27844 6,60433
* 1 Watt = 0,863 Kcal/h - Potenza Termica = Km · ∆Tn
