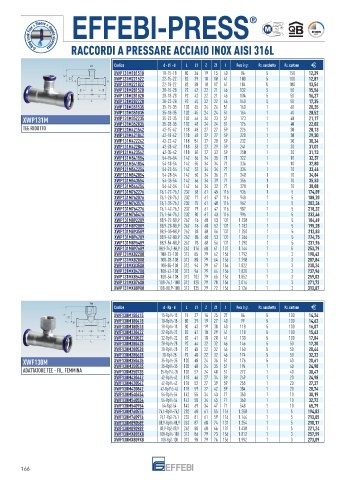

Page 166 - EFFEBI - LISTINO 09

EFFEBI-PRESS ®
®

RACCORDI A PRESSARE ACCIAIO INOX AISI 316L
O-Ring Leak Free + Sleeve = doppia sicurezza

Codice d - d1 - d L L1 Z Z1 I Peso in gr. Pz. sacchetto Pz. cartone
XWP131M181518 18-15-18 80 36 19 15 40 84 5 150 12,29
XWP131M221522 22-15-22 82 39 18 18 41 100 5 100 12,87
XWP131M221822 22-18-22 82 38 18 17 41 104 5 100 13,54
XWP131M281528 28-15-28 92 42 22 21 46 132 5 50 15,56
XWP131M281828 28-18-28 92 42 22 21 46 134 5 50 16,27
XWP131M282228 28-22-28 92 45 22 22 46 140 5 50 17,35
XWP131M351535 35-15-35 102 45 24 24 51 160 1 40 20,25
XWP131M351835 35-18-35 102 45 24 24 51 164 1 40 20,52
XWP131M XWP131M352235 35-22-35 102 46 24 23 51 173 1 1 40 21,17
35-28-35
XWP131M352835
102
51
24
176
22,02
40
48
24
TEE RIDOTTO XWP131M421542 42-15-42 118 48 27 27 59 226 1 20 28,13
XWP131M421842 42-18-42 118 48 27 27 59 228 1 20 29,30
XWP131M422242 42-22-42 118 51 27 28 59 232 1 20 30,34
XWP131M422842 42-28-42 118 53 27 29 59 241 1 20 31,01
XWP131M423542 42-35-42 118 60 27 33 59 250 1 20 31,73
XWP131M541554 54-15-54 142 56 34 35 71 322 1 10 32,37
XWP131M541854 54-18-54 142 55 34 34 71 336 1 10 32,80
XWP131M542254 54-22-54 142 57 34 34 71 334 1 10 33,46
XWP131M542854 54-28-54 142 60 34 36 71 348 1 10 34,84
XWP131M543554 54-35-54 142 66 34 39 71 356 1 10 35,53
XWP131M544254 54-42-54 142 64 34 32 71 378 1 10 38,08
XWP131M762276 76,1-22-76,1 232 68 61 45 116 936 1 5 174,09
XWP131M762876 76,1-28-76,1 232 71 61 47 116 948 1 5 188,20
XWP131M763576 76,1-35-76,1 232 75 61 48 116 962 1 5 202,36
XWP131M764276 76,1-42-76,1 232 79 61 47 116 987 1 5 218,32
XWP131M765476 76,1-54-76,1 232 80 61 43 116 996 1 5 232,46
XWP131M892289 88,9-22-88,9 262 76 68 53 131 1.238 1 5 184,69
XWP131M892889 88,9-28-88,9 262 76 68 52 131 1.182 1 5 195,28
XWP131M893589 88,9-35-88,9 262 83 68 56 131 1.250 1 5 212,83
XWP131M894289 88,9-42-88,9 262 85 68 53 131 1.266 1 5 224,75
XWP131M895489 88,9-54-88,9 262 93 68 56 131 1.290 1 5 237,96
XWP131M897689 88,9-76,1-88,9 262 116 68 61 131 1.144 1 5 253,79
XWP131MX822X8 108-22-108 312 85 79 62 156 1.792 1 3 198,42
XWP131MX828X8 108-28-108 312 88 79 64 156 1.798 1 3 207,84
XWP131MX835X8 108-35-108 312 94 79 67 156 1.822 1 3 230,24
XWP131MX842X8 108-42-108 312 96 79 64 156 1.820 1 3 237,96
XWP131MX854X8 108-54-108 312 102 79 65 156 1.852 1 3 259,03
XWP131MX876X8 108-76,1-108 312 125 79 70 156 2.014 1 3 271,72
XWP131MX889X8 108-88,9-108 312 135 79 72 156 2.126 1 3 313,87

Codice d - Rp - d L L1 Z Z1 I Peso in gr. Pz. sacchetto Pz. cartone
XWF130M150415 15-Rp½-15 74 37 16 25 37 84 5 100 14,24
XWF130M180418 18-Rp½-18 80 39 19 27 40 99 5 100 14,62
XWF130M180518 18-Rp¾-18 80 43 19 30 40 118 5 100 16,07
XWF130M220422 22-Rp½-22 82 41 18 29 41 118 5 100 15,63
XWF130M220522 22-Rp¾-22 82 41 18 28 41 130 5 100 17,84
XWF130M280428 28-Rp½-28 92 44 22 32 46 146 5 50 17,20
XWF130M280528 28-Rp¾-28 92 45 22 32 46 160 5 50 20,44
XWF130M280628 28-Rp1-28 92 48 22 32 46 174 5 50 32,32
XWF130M XWF130M350435 35-Rp½-35 102 48 24 36 51 176 5 40 20,61
35-Rp¾-35
ADATTATORE TEE - FIL. FEMMINA XWF130M350535 35-Rp1¼-35 102 48 24 35 51 194 1 1 40 24,98
40
57
24
51
30,47
40
272
102
XWF130M350735
XWF130M420442 42-Rp½-42 118 46 27 34 59 249 1 20 24,98
XWF130M420542 42-Rp¾-42 118 52 27 39 59 255 1 20 27,37
XWF130M420842 42-Rp1½-42 118 59 27 42 59 384 1 20 28,74
XWF130M540454 54-Rp½-54 142 55 34 43 71 350 1 10 30,19
XWF130M540554 54-Rp¾-54 142 58 34 45 71 360 1 10 32,72
XWF130M540954 54-Rp2-54 142 69 34 47 71 548 1 10 65,79
XWF130M760576 76,1-Rp¾-76,1 232 68 61 55 116 1.258 1 5 194,82
XWF130M760976 76,1-Rp2-76,1 232 81 61 59 116 1.144 1 5 213,05
XWF130M890589 88,9-Rp¾-88,9 262 87 68 74 131 1.254 1 5 210,17
XWF130M890989 88,9-Rp2-88,9 262 88 68 66 131 1.438 1 5 221,24
XWF130MX805X8 108-Rp¾-108 312 86 79 73 156 1.812 1 3 257,59
XWF130MX809X8 108-Rp2-108 312 98 79 76 156 1.992 1 3 273,09
166
