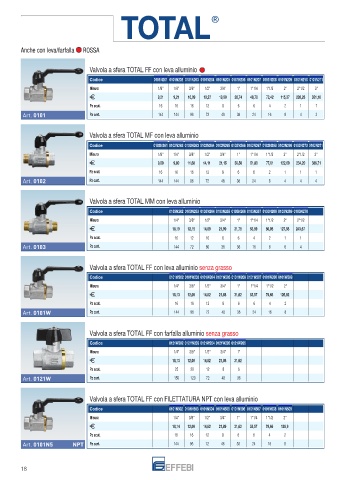

Page 18 - EFFEBI - LISTINO 09

TOTAL
®

Anche con leva/farfalla ROSSA

Valvola a sfera TOTAL FF con leva alluminio

Codice 0101N201 0101N202 0101N203 0101N204 0101N205 0101N206 0101N207 0101N208 0101N209 0101N210 0101N211
Misura 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2" 2"1/2 3"
9,21 9,21 10,99 13,27 19,90 28,74 48,70 72,42 115,37 220,28 351,10
Pz scat. 16 16 16 12 8 6 6 4 2 1 1
Art. 0101 Pz cart. 144 144 96 72 48 36 24 16 8 4 3

Valvola a sfera TOTAL MF con leva alluminio

Codice 0102N261 0102N262 0102N263 0102N264 0102N265 0102N266 0102N267 0102N268 0102N269 0102N270 0102N271
Misura 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2" 2"1/2 3"
9,80 9,80 11,68 14,11 21,15 30,56 51,80 77,01 122,69 234,20 388,71
Pz scat. 16 16 16 12 8 6 6 2 1 1 1
Art. 0102 Pz cart. 144 144 96 72 48 36 24 8 4 4 4

Valvola a sfera TOTAL MM con leva alluminio

Codice 0103N262 0103N263 0103N264 0103N265 0103N266 0103N267 0103N268 0103N269 0103N270
Misura 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2" 2"1/2
10,19 12,15 14,69 21,99 31,78 53,89 80,05 127,58 243,57
Pz scat. 16 12 10 6 6 4 2 1 1
Art. 0103 Pz cart. 144 72 60 36 36 16 8 6 4

Valvola a sfera TOTAL FF con leva alluminio senza grasso
Codice 0101W202 0101W203 0101W204 0101W205 0101W206 0101W207 0101W208 0101W209
Misura 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2"
10,13 12,09 14,62 21,88 31,62 53,57 79,66 126,92
Pz scat. 16 16 12 8 6 6 4 2
Art. 0101W Pz cart. 144 96 72 48 36 24 16 8

Valvola a sfera TOTAL FF con farfalla alluminio senza grasso

Codice 0121W202 0121W203 0121W204 0121W205 0121W206
Misura 1/4" 3/8" 1/2" 3/4" 1"
10,13 12,09 14,62 21,88 31,62
Pz scat. 25 20 12 8 6
Art. 0121W Pz cart. 150 120 72 48 36

Valvola a sfera TOTAL FF con FILETTATURA NPT con leva alluminio

Codice 0101N502 0101N503 0101N504 0101N505 0101N506 0101N507 0101N508 0101N509
Misura 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2"
10,14 12,09 14,62 21,89 31,62 53,57 79,66 126,9
Pz scat. 16 16 12 8 6 6 4 2
Art. 0101N5 NPT Pz cart. 144 96 72 48 36 24 16 8
