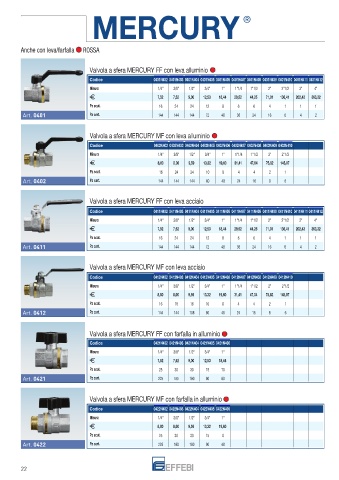

Page 22 - EFFEBI - LISTINO 09

MERCURY ®

Anche con leva/farfalla ROSSA

Valvola a sfera MERCURY FF con leva alluminio

Codice 0401N402 0401N403 0401N404 0401N405 0401N406 0401N407 0401N408 0401N409 0401N410 0401N411 0401N412
Misura 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2" 2"1/2 3" 4"
7,52 7,52 9,00 12,53 18,44 29,52 44,25 71,31 136,41 202,43 363,32
Pz scat. 16 24 24 12 8 6 6 4 1 1 1
Art. 0401 Pz cart. 144 144 144 72 48 36 24 16 6 4 2

Valvola a sfera MERCURY MF con leva alluminio

Codice 0402N402 0402N403 0402N404 0402N405 0402N406 0402N407 0402N408 0402N409 0402N410
Misura 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2" 2"1/2
8,00 8,00 9,59 13,32 19,60 31,41 47,04 75,82 145,07
Pz scat. 16 24 24 10 8 4 4 2 1
Art. 0402 Pz cart. 144 144 144 60 48 24 16 8 6

Valvola a sfera MERCURY FF con leva acciaio

Codice 0411N402 0411N403 0411N404 0411N405 0411N406 0411N407 0411N408 0411N409 0411N410 0411N411 0411N412
Misura 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2" 2"1/2 3" 4"
7,52 7,52 9,00 12,53 18,44 29,52 44,25 71,31 136,41 202,43 363,32
Pz scat. 16 24 24 12 8 6 6 4 1 1 1
Art. 0411 Pz cart. 144 144 144 72 48 36 24 16 6 4 2

Valvola a sfera MERCURY MF con leva acciaio
Codice 0412N402 0412N403 0412N404 0412N405 0412N406 0412N407 0412N408 0412N409 0412N410
Misura 1/4" 3/8" 1/2" 3/4" 1" 1"1/4 1"1/2 2" 2"1/2
8,00 8,00 9,59 13,32 19,60 31,41 47,04 75,82 145,07
Pz scat. 16 16 18 10 8 4 4 2 1
Art. 0412 Pz cart. 144 144 108 60 48 24 16 8 6

Valvola a sfera MERCURY FF con farfalla in alluminio

Codice 0421N402 0421N403 0421N404 0421N405 0421N406
Misura 1/4" 3/8" 1/2" 3/4" 1"
7,52 7,52 9,00 12,53 18,44
Pz scat. 25 30 30 15 10
Art. 0421 Pz cart. 225 180 180 90 60

Valvola a sfera MERCURY MF con farfalla in alluminio

Codice 0422N402 0422N403 0422N404 0422N405 0422N406
Misura 1/4" 3/8" 1/2" 3/4" 1"
8,00 8,00 9,59 13,32 19,60
Pz scat. 25 30 30 15 8
Art. 0422 Pz cart. 225 180 180 90 48
