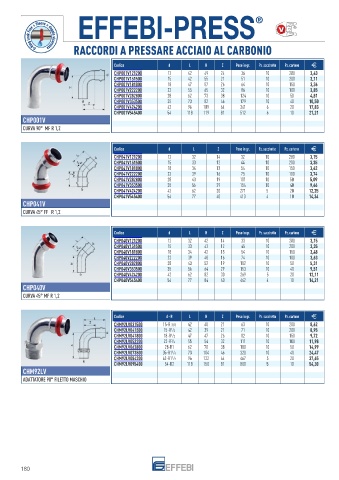

Page 180 - EFFEBI - LISTINO 09

EFFEBI-PRESS ®
®

RACCORDI A PRESSARE ACCIAIO AL CARBONIO
O-Ring Leak Free + Sleeve = doppia sicurezza

Codice d L H Z Peso in gr. Pz. sacchetto Pz. cartone
CHP001V121200 12 42 49 24 36 10 280 3,43
CHP001V151500 15 42 55 21 51 10 200 3,11
CHP001V181800 18 47 57 26 64 10 150 3,36
CHP001V222200 22 55 65 32 86 10 100 3,85
CHP001V282800 28 62 73 38 124 10 50 4,81
CHP001V353500 35 73 82 46 179 10 40 10,50
CHP001V424200 42 96 109 64 341 6 20 17,83
CHP001V545400 54 118 119 81 512 6 10 21,21
CHP001V
CURVA 90° MF R 1,2

Codice d L Z Peso in gr. Pz. sacchetto Pz. cartone
CHP041V121200 12 32 14 32 10 280 3,15
CHP041V151500 15 33 12 44 10 200 3,35
CHP041V181800 18 34 13 54 10 150 3,62
CHP041V222200 22 39 16 75 10 100 3,74
CHP041V282800 28 43 19 101 10 50 5,09
CHP041V353500 35 56 29 154 10 40 9,66
CHP041V424200 42 62 30 271 5 20 12,25
CHP041V545400 54 77 40 413 4 10 14,34
CHP041V
CURVA 45° FF R 1,2

Codice d L H Z Peso in gr. Pz. sacchetto Pz. cartone
CHP040V121200 12 32 42 14 33 10 280 3,15
CHP040V151500 15 33 43 12 45 10 200 3,35
CHP040V181800 18 34 42 13 54 10 150 3,48
CHP040V222200 22 39 48 16 74 10 100 3,63
CHP040V282800 28 43 52 19 102 10 50 5,31
CHP040V353500 35 56 64 29 153 10 40 9,51
CHP040V424200 42 62 82 30 269 5 20 12,11
CHP040V545400 54 77 84 40 462 4 10 14,21
CHP040V
CURVA 45° MF R 1,2

Codice d - R L H Z Peso in gr. Pz. sacchetto Pz. cartone
CHM92LV031500 15-R 3 / 8 42 40 21 63 10 200 8,62
CHM92LV041500 15-R½ 42 39 21 71 10 200 8,95
CHM92LV041800 18-R½ 47 47 26 82 10 150 9,72
CHM92LV052200 22-R¾ 55 54 32 111 10 100 11,98
CHM92LV062800 28-R1 62 70 38 180 10 50 14,99
CHM92LV073500 35-R1¼ 73 104 46 320 10 40 24,47
CHM92LV084200 42-R1½ 96 122 64 467 5 20 37,65
CHM92LV095400 54-R2 118 150 81 800 5 10 54,30
CHM92LV
ADATTATORE 90° FILETTO MASCHIO

180
